| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
620 pcs
|
620 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Current Rating (Nominal @ LM 259 X-L 19) | |
| Current Rating (Nominal/Maximum) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Inductance (Nominal) | |
| Length | |
| Max ETOP | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Shielding | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Nominal @ LM 259 X-L 19) | |
| dcr (Nominal/Maximum) |

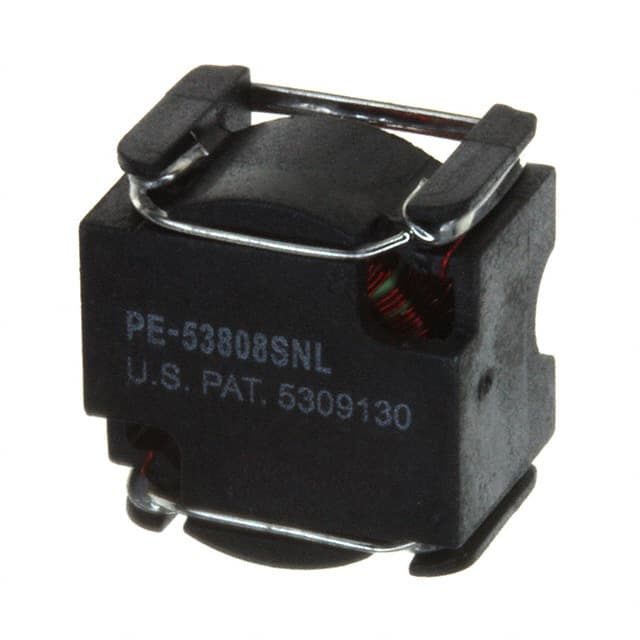

The Pulse Electronics PE-53808SNL is a toroidal surface mount inductor with a nominal inductance of 374µH and a rated current of 200mA. It has a DC resistance (DCR) of 2.7 Ohms and a tolerance of ±20%. This shielded inductor operates within a temperature range of -40°C to 130°C.
Designed for surface mounting, the PE-53808SNL has dimensions of 9.14mm in height, 11.18mm in length, and 11.05mm in width. The component is suitable for power applications and is packaged on a reel.
The datasheet specifies an alternative inductance value of 173µH with a rated current of 600mA and a DCR of 0.54Ω, along with a maximum ETOP of 36.3V-µSec, operating at -40°C to +125°C. The manufacturer page lists an inductance of 173uH, a maximum DC current of 540mA, and a maximum DCR of 600mOhms, with an operating temperature range of -40°C to +130°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 374µH.
The current rating is 200mA.
The DC resistance is 2.7 Ohms.
The operating temperature range is -40°C to 130°C.
It is a toroidal inductor.
The dimensions are 9.14mm in height, 11.18mm in length, and 11.05mm in width.
The datasheet specifies an inductance of 173µH with a rated current of 600mA.
