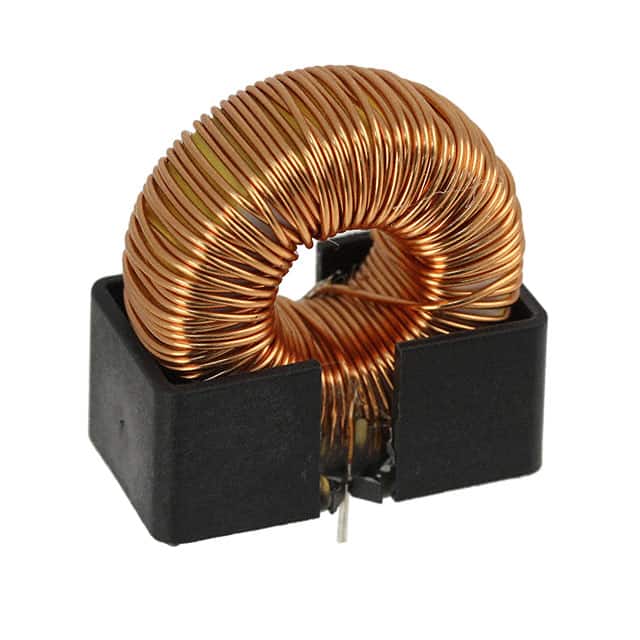

PE-53120NL The Pulse Electronics PE-53120NL is a toroidal fixed inductor with 1mH inductance and a current rating of 950mA. It features a DCR of 240mOhm Max and operates between -40°C and 130°C.
Mfr Part #:

PE-53120NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-53120NL is a toroidal fixed inductor with 1mH inductance and a current rating of 950mA. It features a DCR of 240mOhm Max and operates between -40°C and 130°C.
✓ Total Stock: 4 pcs
$ Price Range: $0.52

PE-53120NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-53120NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

PE-53120NL Description

Short technical summary and product information.

The Pulse Electronics PE-53120NL is a toroidal fixed inductor designed for through-hole mounting. It offers an inductance value of 1 mH with a tolerance of ±20%. This component is rated for a maximum DC current of 950 mA and has a maximum DC resistance of 240 mOhms.



The operating temperature range for this inductor is from -40°C to +130°C. Its dimensions are 33.02mm in length, 17.78mm in width, and 35.56mm in height. The PE-53120NL is unshielded and comes in a radial, vertical open package.



This fixed inductor is suitable for applications requiring stable inductance and current handling capabilities within a defined temperature range. Its toroidal construction and through-hole mounting make it a versatile component for various electronic circuits.

PE-53120NL Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PE-53120NL Toroidal Fixed Inductor
Subcategory: Fixed Inductor

PE-53120NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-53120NL Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-53120NL Features

  • Toroidal fixed inductor with 1mH inductance.
  • Rated for 950mA maximum DC current.
  • Low DC resistance of 240mOhm Max.
  • Wide operating temperature range: -40°C to 130°C.
  • Through hole mounting for easy integration.

PE-53120NL Applications

  • Suitable for power supply filtering circuits.
  • Used in signal processing applications.
  • Ideal for general purpose inductance needs.
  • Component for audio frequency circuits.

PE-53120NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-53120NL?

The inductance of the PE-53120NL is 1 mH.

What is the current rating for the PE-53120NL?

The PE-53120NL has a current rating of 950 mA.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DC resistance (DCR) for the PE-53120NL is 240mOhm.

What is the operating temperature range for the PE-53120NL?

The PE-53120NL operates between -40°C and 130°C.

What type of mounting does the PE-53120NL use?

The PE-53120NL uses through-hole mounting.

What is the package type for the PE-53120NL?

The PE-53120NL is in a Radial, Vertical (Open) package.
