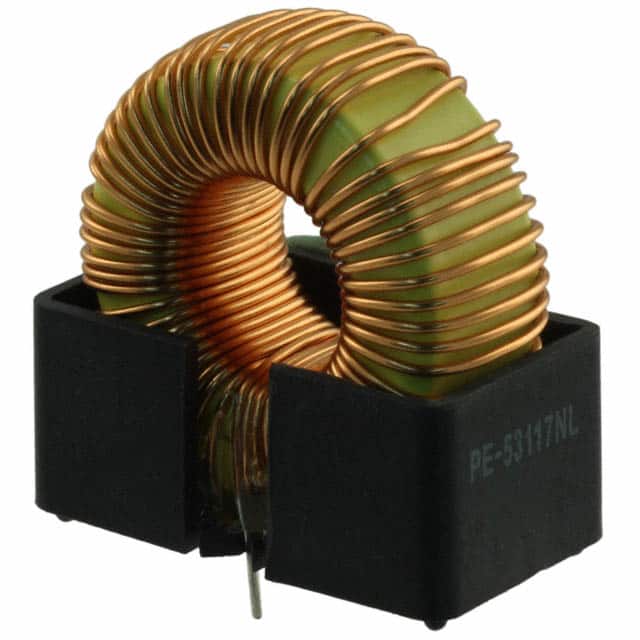

PE-53117NL The Pulse Electronics PE-53117NL is a toroidal fixed inductor with 330µH inductance and a 3A current rating. It features through-hole mounting and a ±20% tolerance.
Mfr Part #:

PE-53117NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-53117NL is a toroidal fixed inductor with 330µH inductance and a 3A current rating. It features through-hole mounting and a ±20% tolerance.
✓ Total Stock: 1 pcs
$ Price Range: $0.52

PE-53117NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-53117NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

PE-53117NL Description

Short technical summary and product information.

The Pulse Electronics PE-53117NL is a fixed inductor designed for various electronic applications. This toroidal inductor offers an inductance value of 330µH with a tolerance of ±20%. It is rated for a maximum DC current of 3A and has a maximum DC resistance of 150mOhm.



The component operates within a temperature range of -40°C to 130°C. It is designed with through-hole mounting and features a radial, vertical (open) package style. The dimensions of the inductor are 33.02mm in length, 17.78mm in width, and 35.56mm in height.



This inductor is RoHS3 compliant and has an MSL of Level 1. It is suitable for applications requiring reliable inductance and current handling capabilities in a through-hole form factor.

PE-53117NL Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PE-53117NL Toroidal Fixed Inductor
Subcategory: Fixed Inductor

PE-53117NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-53117NL Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-53117NL Features

  • 330µH inductance with ±20% tolerance.
  • Rated for 3A maximum DC current.
  • Low 150mOhm maximum DC resistance.
  • Operates from -40°C to 130°C.
  • Through-hole mounting, radial package.

PE-53117NL Applications

  • Suitable for power supply filtering.
  • Used in signal conditioning circuits.
  • Applicable in general purpose inductors.
  • Ideal for through-hole designs.

PE-53117NL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-53117NL?

The inductance of the PE-53117NL is 330µH.

What is the current rating for the PE-53117NL inductor?

The PE-53117NL has a maximum DC current rating of 3A.

What is the DC resistance (DCR) of the PE-53117NL?

The maximum DC resistance for the PE-53117NL is 150mOhm.

What is the operating temperature range for the PE-53117NL?

The PE-53117NL operates between -40°C and 130°C.

What type of inductor is the PE-53117NL?

The PE-53117NL is a toroidal fixed inductor.

How is the PE-53117NL mounted?

The PE-53117NL is designed for through-hole mounting.

What is the standard package quantity for the PE-53117NL?

The standard package quantity for the PE-53117NL is 35.
