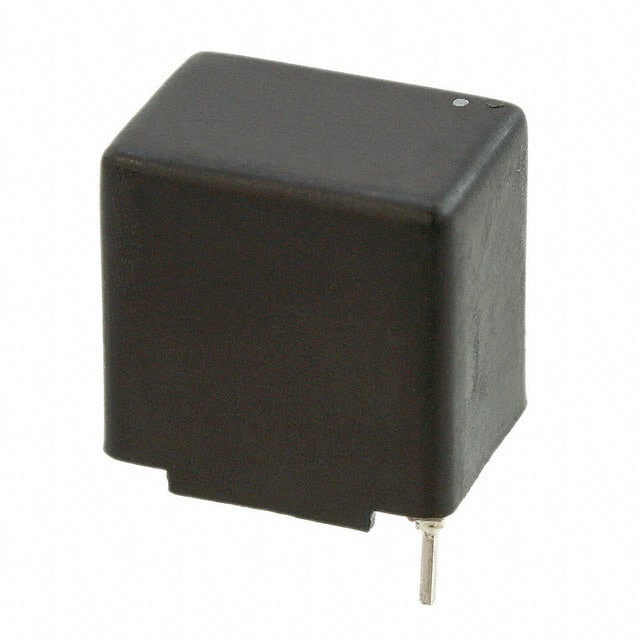

PE-52646NL The Pulse Electronics PE-52646NL is a toroidal fixed inductor with a 220µH inductance and a 1.5A current rating. It features through-hole mounting.
Mfr Part #:

PE-52646NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-52646NL is a toroidal fixed inductor with a 220µH inductance and a 1.5A current rating. It features through-hole mounting.
✓ Total Stock: 5 pcs
$ Price Range: $0.52

PE-52646NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-52646NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

PE-52646NL Description

Short technical summary and product information.

The Pulse Electronics PE-52646NL is a toroidal fixed inductor designed for various electronic applications. It offers an inductance value of 220µH and a current rating of 1.5A, with a maximum DC resistance of 420mOhm.



This inductor has a tolerance of ±20% and operates within a temperature range of -40°C to 130°C. It is unshielded and features through-hole mounting with a package described as Radial, Vertical - Corner Terminals. The dimensions are 18.03mm in height, length, and 12.95mm in width.



Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status, though these are unverified. The part number is PE-52646NL.

PE-52646NL Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PE-52646NL Toroidal Fixed Inductor
Subcategory: Fixed Inductor

PE-52646NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-52646NL Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-52646NL Features

  • Toroidal fixed inductor with 220µH inductance.
  • Rated for 1.5A current with 420mOhm DCR.
  • Operates from -40°C to 130°C.
  • Through hole mounting, radial package.
  • Dimensions: 18.03mm x 12.95mm x 18.03mm.

PE-52646NL Applications

  • Suitable for power supply filtering.
  • Used in signal processing circuits.
  • Applicable in general electronics designs.
  • Component for board-level integration.

PE-52646NL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-52646NL?

The inductance of the PE-52646NL is 220µH.

What is the current rating for the PE-52646NL?

The PE-52646NL has a current rating of 1.5A.

What is the DC resistance (DCR) of this inductor?

The maximum DC resistance (DCR) for the PE-52646NL is 420mOhm.

What is the operating temperature range for the PE-52646NL?

The PE-52646NL operates within a temperature range of -40°C to 130°C.

How is the PE-52646NL mounted?

The PE-52646NL is designed for through-hole mounting.
