| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

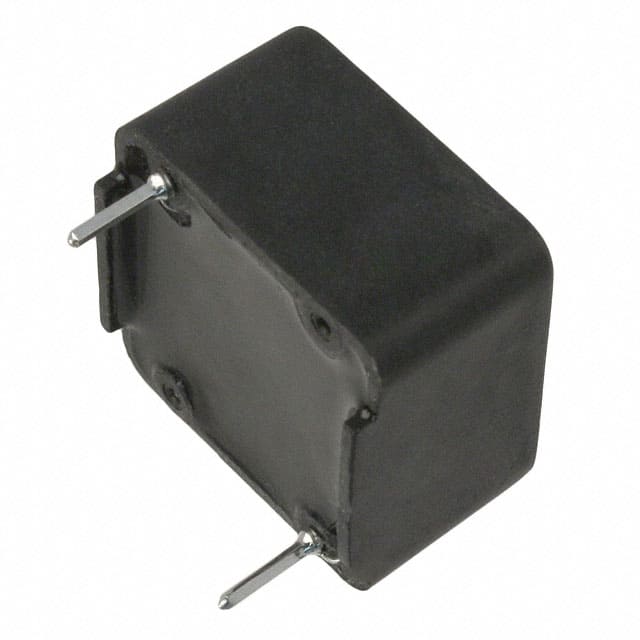

The Pulse Electronics PE-52629NL is a toroidal fixed inductor designed for various electronic applications. It offers an inductance value of 680µH and a current rating of 850mA, with a maximum DC resistance of 1.5 Ohms.
This inductor has a tolerance of ±20% and operates within a temperature range of -40°C to 130°C. It is unshielded and features through-hole mounting with a package type of Radial, Horizontal - Corner Terminals. The dimensions are 18.03mm in length and width, and 11.68mm in height.
Compliance information indicates RoHS3 compliance and MSL 1 rating. The REACH status is unaffected. This component is suitable for applications requiring stable inductance and current handling capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the PE-52629NL is 680µH.
The current rating for the PE-52629NL is 850mA.
The DC resistance (DCR) of the PE-52629NL is 1.5 Ohm Max.
The operating temperature range for the PE-52629NL is -40°C to 130°C.
The PE-52629NL is mounted using the through-hole method.
