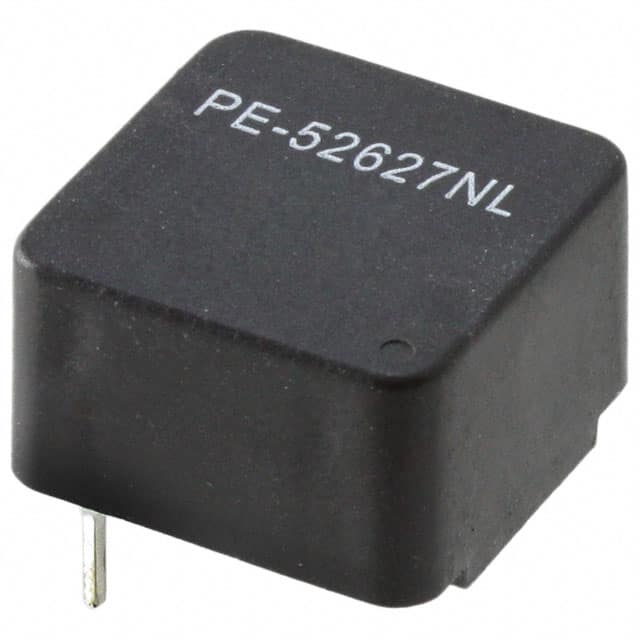

PE-52627NL The Pulse Electronics PE-52627NL is a fixed inductor with 330µH inductance and a 1A current rating. It features through-hole mounting.
Mfr Part #:

PE-52627NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-52627NL is a fixed inductor with 330µH inductance and a 1A current rating. It features through-hole mounting.
✓ Total Stock: 8 pcs
$ Price Range: $0.52

PE-52627NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-52627NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
Current Rating (Maximum)
DC Resistance (DCR)
Factory Pack Quantity
Height
Inductance
Lead Spacing
Length
Mounting Type
Operating Temperature
Operating Temperature (Minimum/Maximum)
Shielding
Test Frequency
Tolerance
Type
Width
dcr (Maximum)
View Similar Products (0)

PE-52627NL Description

Short technical summary and product information.

The Pulse Electronics PE-52627NL is a toroidal fixed inductor designed for various electronic applications. It offers an inductance value of 330µH with a tolerance of ±20% and a maximum DC current rating of 1A. The component has a maximum DC resistance (DCR) of 780mOhm.



This inductor operates within a temperature range of -40°C to 130°C. It is constructed with a through-hole mounting type and comes in a radial, horizontal package with corner terminals. The dimensions are 18.03mm in length, 12.95mm in width, and 11.68mm in height, with a lead spacing of 15.24mm.



The PE-52627NL is specified as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected. It is an unshielded component, suitable for applications requiring stable inductance characteristics.

PE-52627NL Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PE-52627NL Fixed Inductor
Subcategory: Fixed Inductors

PE-52627NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-52627NL Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-52627NL Features

  • Toroidal fixed inductor with 330µH inductance.
  • Rated for 1A maximum DC current.
  • Low DC resistance of 780mOhm.
  • Wide operating temperature range.
  • Through-hole mounting package.

PE-52627NL Applications

  • Suitable for power supply circuits.
  • Used in filtering applications.
  • Ideal for signal conditioning.
  • General purpose inductor use.

PE-52627NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-52627NL?

The inductance of the PE-52627NL is 330µH.

What is the current rating for the PE-52627NL?

The maximum DC current rating for the PE-52627NL is 1A.

What is the DC resistance of the PE-52627NL?

The maximum DC resistance (DCR) for the PE-52627NL is 780mOhm.

What is the operating temperature range for this inductor?

The PE-52627NL operates between -40°C and 130°C.

How is the PE-52627NL mounted?

The PE-52627NL is designed for through-hole mounting.

What is the package type for the PE-52627NL?

The PE-52627NL comes in a radial, horizontal package with corner terminals.
