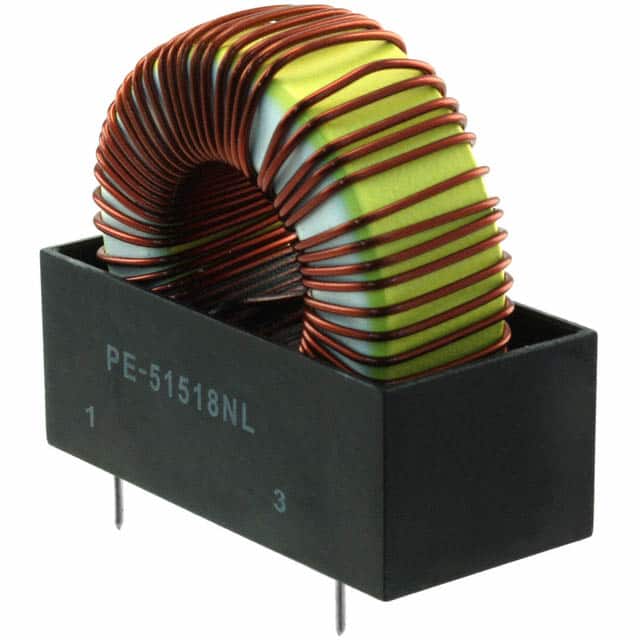

PE-51518NL The Pulse Electronics PE-51518NL is a toroidal fixed inductor with a 335µH inductance and a 6A current rating. It features a low DC resistance of 95mOhm Max and operates within a wide temperature range.
Mfr Part #:

PE-51518NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-51518NL is a toroidal fixed inductor with a 335µH inductance and a 6A current rating. It features a low DC resistance of 95mOhm Max and operates within a wide temperature range.
✓ Total Stock: 132 pcs
$ Price Range: $0.52

PE-51518NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
132 pcs
On Request
132 pcs On Request 1 On Request On Request 11+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-51518NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Type
Width
View Similar Products (0)

PE-51518NL Description

Short technical summary and product information.

This Pulse Electronics PE-51518NL is a toroidal fixed inductor designed for through-hole mounting. It offers a significant inductance of 335µH and can handle a current rating of 6A, with a maximum DC resistance of 95mOhm.



The inductor operates across a broad temperature range from -40°C to 130°C, making it suitable for various environmental conditions. Its unshielded construction and radial, vertical, 4-lead (open) package type are key mechanical and electrical characteristics.



With dimensions of 58.42mm in length, 28.19mm in width, and 58.42mm in height, this component is designed for applications requiring robust performance in power conversion and filtering circuits. Its through-hole mounting ensures secure placement on PCBs.

PE-51518NL Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PE-51518NL Toroidal Fixed Inductor
Subcategory: Fixed Inductor

PE-51518NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-51518NL Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-51518NL Features

  • 335µH inductance value.
  • Rated for 6A current.
  • Low 95mOhm maximum DCR.
  • Wide -40°C to 130°C operating temperature.
  • Through-hole mounting.

PE-51518NL Applications

  • Suitable for power conversion circuits.
  • Used in filtering applications.
  • Robust for demanding environments.
  • Reliable for signal processing.

PE-51518NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-51518NL?

The inductance of the PE-51518NL is 335µH.

What is the current rating for the PE-51518NL?

The PE-51518NL has a current rating of 6A.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DC resistance (DCR) for the PE-51518NL is 95mOhm.

What is the operating temperature range for the PE-51518NL?

The PE-51518NL operates between -40°C and 130°C.

How is the PE-51518NL mounted?

The PE-51518NL is designed for through-hole mounting.

What type of inductor is the PE-51518NL?

The PE-51518NL is a toroidal fixed inductor.
