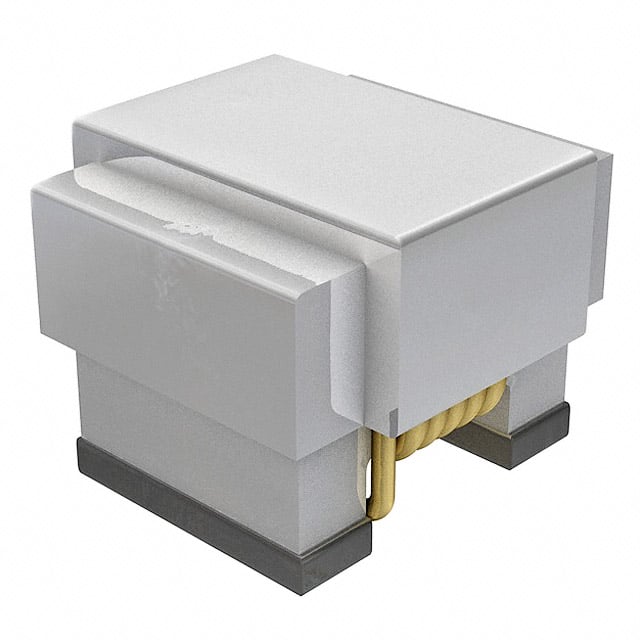

PE-0805CD120KTT The Pulse Electronics PE-0805CD120KTT is a wirewound, drum core fixed inductor. It features a 11.9 nH inductance and a 600 mA current rating.
Mfr Part #:

PE-0805CD120KTT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PE-0805CD120KTT is a wirewound, drum core fixed inductor. It features a 11.9 nH inductance and a 600 mA current rating.
✓ Total Stock: 38,667 pcs
$ Price Range: $0.52

PE-0805CD120KTT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
38,667 pcs
On Request
38667 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PE-0805CD120KTT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Supplier Device Package
Tolerance
Type
Width
View Similar Products (0)

PE-0805CD120KTT Description

Short technical summary and product information.

This Pulse Electronics PE-0805CD120KTT is a wirewound, drum core fixed inductor designed for surface mount applications. It offers an inductance value of 11.9 nH with a tolerance of ±10% and a maximum current rating of 600 mA.



The inductor operates within a temperature range of -40°C to 125°C and has a DC resistance of 150 mOhm maximum. Its self-resonant frequency is 4 GHz, and it is unshielded.



The component is housed in an 0805 (2012 Metric) package, measuring 2.29mm in length, 1.68mm in width, and 1.58mm in height. The core material is ceramic.



This inductor is suitable for various electronic circuits requiring stable inductance and current handling capabilities in a compact surface mount form factor.

PE-0805CD120KTT Quick Information

Product Type: Fixed Inductor
Series: 0805CD
Canonical Name: Pulse Electronics PE-0805CD120KTT Wirewound Ceramic Drum Core Inductor
Subcategory: Drum Core

PE-0805CD120KTT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PE-0805CD120KTT Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PE-0805CD120KTT Features

  • Wirewound ceramic drum core inductor.
  • 11.9 nH inductance with ±10% tolerance.
  • Rated for 600 mA current.
  • 150 mOhm maximum DC resistance.
  • 0805 surface mount package.

PE-0805CD120KTT Applications

  • Suitable for RF signal filtering.
  • Used in power supply circuits.
  • Ideal for impedance matching.
  • Component in communication systems.

PE-0805CD120KTT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the PE-0805CD120KTT?

The inductance of the PE-0805CD120KTT is 11.9 nH.

What is the current rating for the PE-0805CD120KTT inductor?

The PE-0805CD120KTT inductor has a current rating of 600 mA.

What is the DC resistance (DCR) of the PE-0805CD120KTT?

The maximum DC resistance (DCR) for the PE-0805CD120KTT is 150 mOhm.

What is the package type for the PE-0805CD120KTT?

The PE-0805CD120KTT is supplied in an 0805 (2012 Metric) package and is designed for surface mounting.

What is the operating temperature range for this inductor?

The operating temperature range for the PE-0805CD120KTT is -40°C to 125°C.
