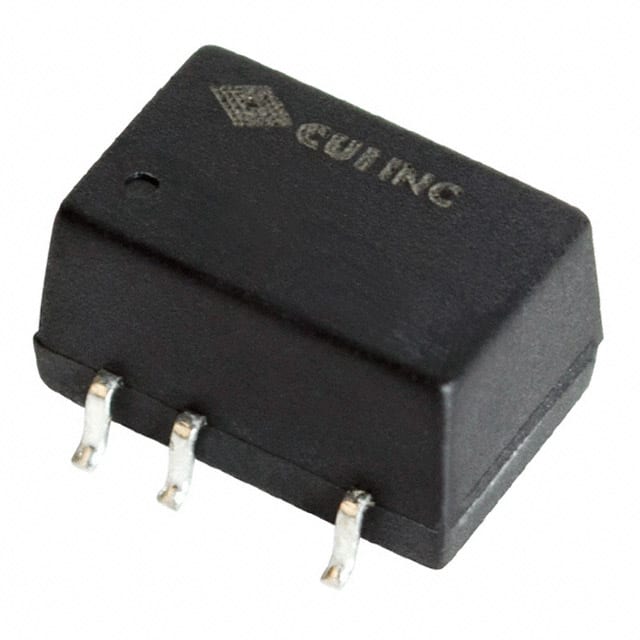

The PDS1-S5-S5-M is a 1W isolated DC-DC converter from CUI Inc., part of the PDS1-M series. It features 1500Vdc input-to-output isolation and short circuit protection, making it suitable for commercial ITE applications.
Electrical specifications include an input voltage range of 4.5V to 5.5V, a fixed 5V output at up to 200mA, and typical efficiency of 80%. Ripple and noise are 60 mVp-p typical, with a switching frequency of 100 kHz. Line regulation is 1.2% maximum for a 1% input change, and load regulation is 12% maximum from 10% to full load.
The converter operates over a temperature range of -40°C to 105°C with derating. It is housed in a surface-mount 8-SMD module with 5 leads, measuring 12.7mm x 8.3mm x 7.3mm. The device is approved to EN and UL standards (55024, 55032 Class A, 60950-1).
4.5V to 5.5V.
8-SMD Module, 5 Leads.
-40°C to 105°C with derating.
RoHS3 Compliant (unverified).
200mA maximum.
1500Vdc.
Yes, it features short circuit protection (SCP).
