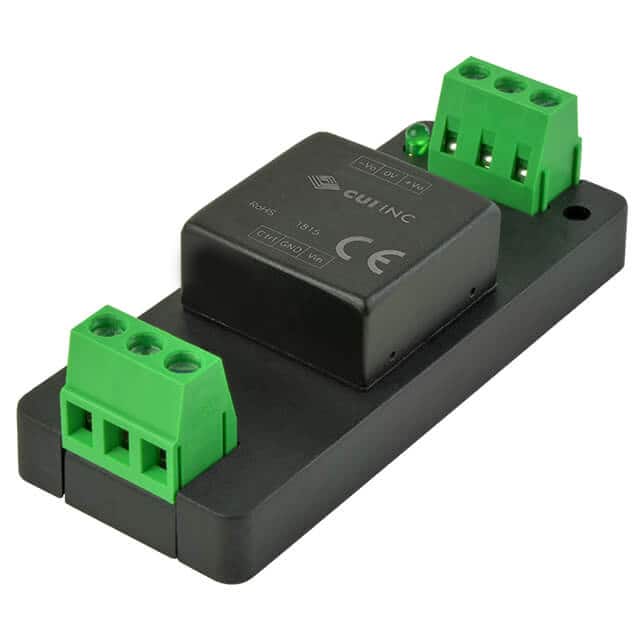

The CUI Inc. PDQE10-Q48-S15-T is a step-down DC-DC converter designed for industrial applications. It operates with a nominal input voltage of 48 Vdc, accepting a range from 18 Vdc to 75 Vdc. The converter provides a stable 15 Vdc output at a current of 0.667 A, delivering a total output power of 10W.
Key electrical specifications include a high efficiency of 87% (typical) and an isolation voltage of 1500 Vdc. The operating temperature range is -40°C to 85°C, with derating. It features positive on/off logic and is suitable for ITE (Commercial) applications.
This model is designed for chassis mounting and comes in a tray package. Its dimensions are 76.0mm in length, 31.5mm in width, and 21.2mm in height. The converter meets standards such as 55024 and 55032 Class A, and is approved by EN.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range for the PDQE10-Q48-S15-T is 18 Vdc to 75 Vdc.
The PDQE10-Q48-S15-T provides a 15 Vdc output voltage at a current of 0.667 A.
The CUI Inc. PDQE10-Q48-S15-T has a power rating of 10W.
The typical efficiency of the PDQE10-Q48-S15-T is 87%.
The operating temperature range for the PDQE10-Q48-S15-T is -40°C to 85°C.
The CUI Inc. PDQE10-Q48-S15-T is designed for chassis mounting.
