PDB260W-1300-280

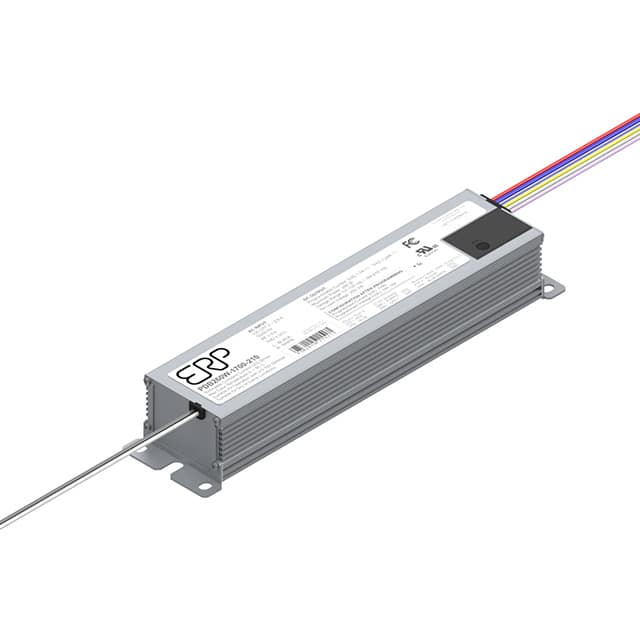

The ERP Power PDB260W-1300-280 is a 260W programmable constant current LED driver designed for commercial and industrial lighting applications. It operates from a nominal input voltage of 120 to 277 VAC and delivers up to 260W of output power with a typical efficiency of 93%. The driver features dual output channels: Output 1 provides 650 to 1300 mA with 152 to 200 V, while Output 2 provides 465 to 930 mA with 213 to 280 V. Both outputs are programmable via serial port. The dimming interface is analog 0-10V with a non-linear profile and dim-to-off function, allowing dimming from 1% to 100% of output current. Protection features include over-current, over-temperature, short-circuit, and over-power protection with auto-recovery. The driver is housed in an IP66-rated aluminum case with silicone-based potting for environmental resistance. Dimensions are 240.5 mm x 50.8 mm x 38.6 mm with wire lead terminations. The driver is compliant with CB, CE, and cULus safety standards, and meets FCC Part 15 Class A and EN55015 EMI limits. With a lifetime of 50,000 hours at Tc=70C and a maximum case temperature of 90C, it is suitable for demanding LED lighting installations.
