| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Lead Style | |
| Maximum Operating Voltage (Maximum) | |
| Mechanical Angle | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Residual Resistance (Maximum) | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Rotational Life | |
| Rotational Noise | |
| Rotational Torque | |
| Standard Resistance Range | |
| Standard Resistance Tolerance | |
| Stop Strength | |
| Taper | |
| Termination Style | |
| Tolerance |

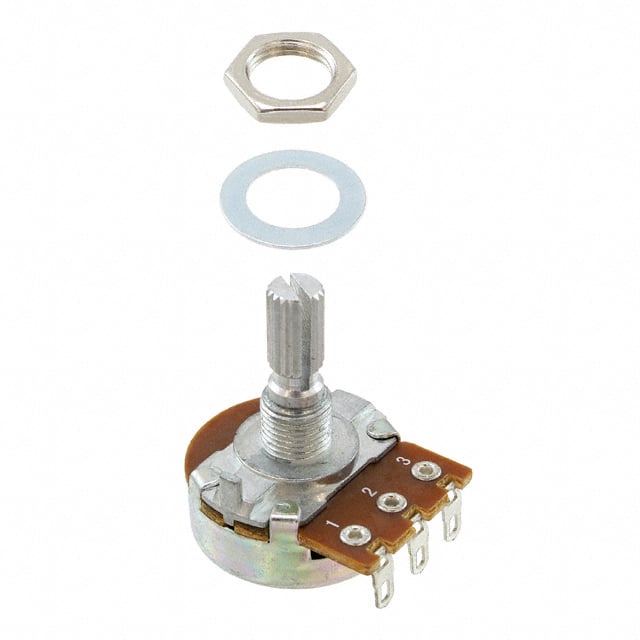

The Bourns PDB241-S420K-103B0 is a 24mm rotary potentiometer from the PDB24 series. It features a carbon element and a linear taper, offering a standard resistance range from 1k Ohm to 1M Ohm, with this specific unit at 10k Ohms and a tolerance of ±20%.
This potentiometer is designed for panel mounting with an M8 x 0.75 bushing thread and a 0.787" (20.00mm) long actuator. The actuator diameter is 0.236" (6.00mm) and it has a knurled and slotted type. The device provides a mechanical rotation of 300° and has a rotational life of at least 15,000 cycles.
Electrically, it has a power rating of 0.5W for linear taper and 0.25W for audio taper, with a maximum operating voltage of 500V for linear and 250V for audio. It operates within an environmental temperature range of -10°C to +70°C. The termination style is solder lug.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10k Ohms.
The power rating is 0.5W.
The tolerance is ±20%.
It features a linear taper.
It is designed for panel mounting.
The operating temperature range is -10°C to +70°C.
The standard rotational life is 15,000 cycles minimum.
