| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Lead Spacing | |
| Mechanical Angle | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Operating Temperature | |
| Operating Voltage (Maximum @ Audio) | |
| Operating Voltage (Maximum @ Linear) | |
| Power (Watts) | |
| Power Rating Audio | |
| Power Rating Linear | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Rotational Life | |
| Rotational Torque | |
| Sliding Noise | |
| Soldering Condition (Maximum @ Manual) | |
| Soldering Condition (Maximum @ Wave) | |
| Standard Resistance Range | |
| Stop Strength | |
| Storage Temperature | |
| Switch Life | |
| Switch Operating Force | |
| Switch Operating Speed | |
| Switch Travel | |
| Switch Type | |
| Tape & Reel | |
| Taper | |
| Termination Style | |
| Tolerance |

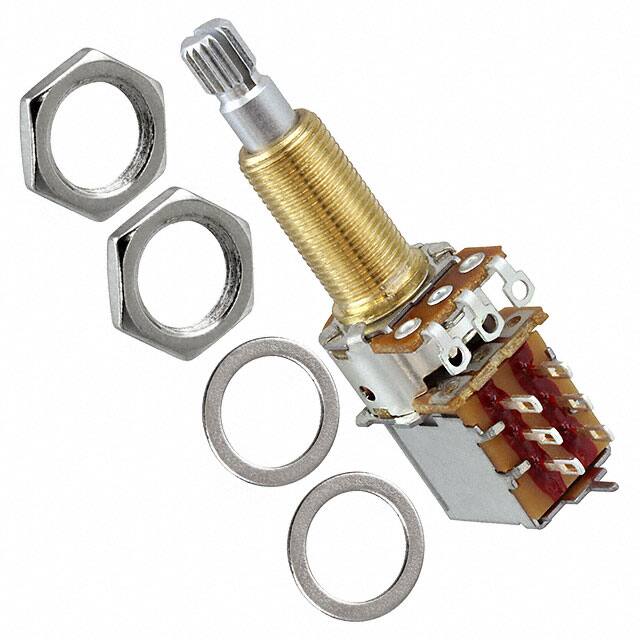

This Bourns PDB185-GTR31-504C2 is a 17mm guitar potentiometer with a latching-push switch. It features a carbon element and offers both linear and audio taper options, with this specific model set to reverse logarithmic taper. The resistance value is 500k Ohms with a tolerance of ±20%.
Electrical characteristics include a power rating of 0.1 watt for linear taper and 0.05 watt for audio taper. Maximum operating voltages are 150V for linear and 100V for audio. The potentiometer has a mechanical angle of 300° ±5° and a rotational life of 15,000 cycles. The integrated DPDT switch has a life of 10,000 actuations.
Designed for panel mounting, it has a 3/8"-32 bushing thread and a knurled and slotted actuator. The termination style is solder lug. Environmental specifications include an operating temperature range of -10°C to +70°C and a Moisture Sensitivity Level (MSL) of 1.
This component is RoHS3 compliant and REACH unaffected. It is suitable for applications requiring precise resistance control combined with a push-push switch function, commonly found in audio equipment and musical instrument effects.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the PDB185-GTR31-504C2 potentiometer is 500k Ohms.
The tolerance for the PDB185-GTR31-504C2 potentiometer is ±20%.
The power rating is 0.1 watt for linear taper and 0.05 watt for audio taper.
Yes, the PDB185-GTR31-504C2 features a Push-Push, DPDT built-in switch.
The operating temperature range is -10°C to +70°C.
The PDB185-GTR31-504C2 potentiometer is designed for panel mounting.
