| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Lead Spacing | |
| Maximum Operating Voltage (Maximum @ Audio) | |
| Maximum Operating Voltage (Maximum @ Linear) | |
| Mechanical Angle | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating (Nominal @ Audio) | |
| Power Rating (Nominal @ Linear) | |
| Residual Resistance | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Rotational Life | |
| Rotational Torque | |
| Sliding Noise | |
| Stop Strength | |
| Storage Temperature | |
| Switch Life | |
| Switch Power Rating | |
| Switch Travel | |
| Switch Type | |
| Tape & Reel | |
| Taper | |
| Termination Style | |
| Tolerance |

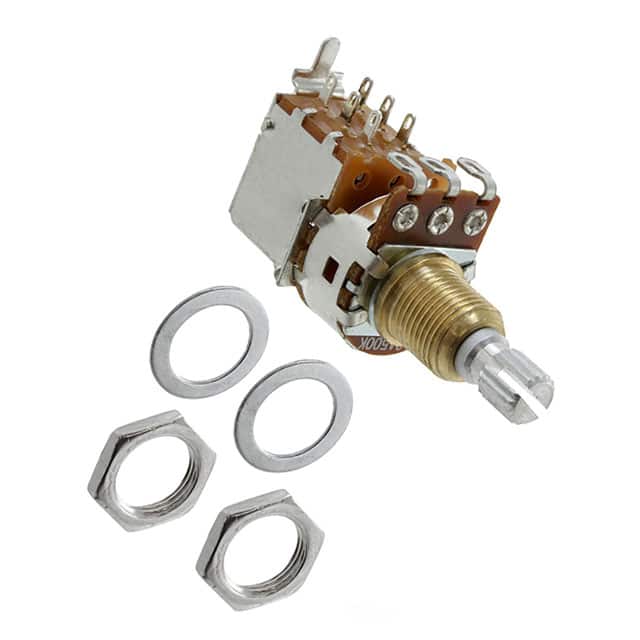

The Bourns PDB183-GTR01-254A2 is a 17mm guitar potentiometer with an integrated DPDT push-pull switch. This component features a carbon element and offers both linear and audio taper options, with this specific model specified as logarithmic taper.
Key electrical characteristics include a standard resistance range of 250k ohms with a tolerance of ±20%. The power rating for linear operation is 0.2 watt, and for audio operation, it is 0.1 watt. The maximum operating voltage is 200V for linear and 150V for audio applications. The potentiometer has a mechanical angle of 300° ±5° and a rotational life of 15,000 cycles. The integrated push-pull switch also has a life expectancy of 15,000 cycles.
Mechanically, the PDB183-GTR01-254A2 is designed for panel mounting and features a knurled and slotted actuator with a diameter of 6mm and a length of 19mm. It utilizes solder lug terminations for easy connection. The operating temperature range is -10°C to +50°C.
This potentiometer is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns PDB183-GTR01-254A2 potentiometer has a resistance value of 250k ohms.
The power rating for linear operation is 0.2 watt, and for audio operation, it is 0.1 watt.
The PDB183-GTR01-254A2 potentiometer uses a logarithmic taper.
Yes, the PDB183-GTR01-254A2 features a DPDT push-pull switch.
The operating temperature range is -10°C to +50°C.
The PDB183-GTR01-254A2 is designed for panel mounting.
