| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Detent Torque (Minimum/Maximum) | |
| Lead Style | |
| Maximum Operating Voltage | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Operating Temperature (Minimum/Maximum) | |
| Power (Watts) | |
| Residual Resistance | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Rotational Life | |
| Rotational Torque (Minimum/Maximum) | |
| Sliding Noise | |
| Soldering Condition | |
| Stop Strength | |
| Storage Temperature | |
| Tape & Reel | |
| Taper | |
| Termination Style | |
| Tolerance |

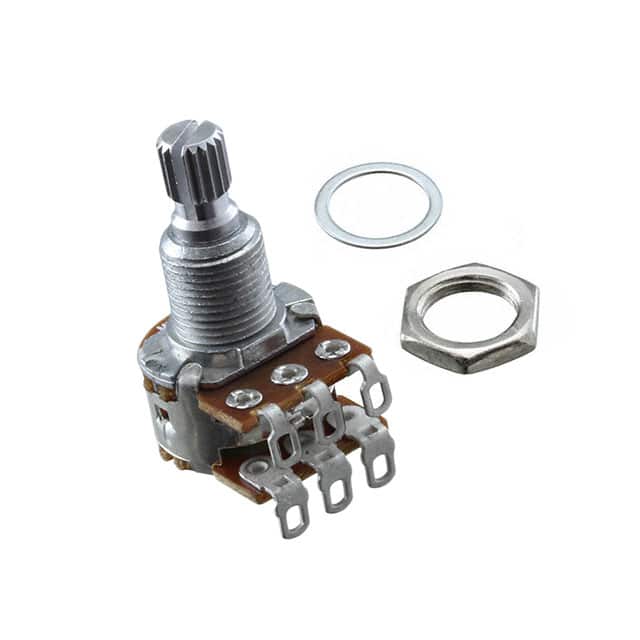

The Bourns PDB182-GTRB1-504MN is a 17mm blend-balance guitar potentiometer designed for various audio applications. It features a carbon element and offers a standard resistance range of 250k to 500k ohms with a ±20% tolerance.
This dual-section potentiometer is rated for 0.06W power and has a maximum operating voltage of 150V. It includes a center detent as standard and is available with rear solder lugs or PC pins. The mechanical specifications include a 300° mechanical angle, rotational torque between 10 to 150 gf-cm, and a rotational life of 15,000 cycles.
The PDB182-GTRB1-504MN is designed for panel mounting with a 3/8-32 bushing thread. The actuator features a knurled shaft with a diameter of 6mm and a length of 19mm. It operates within a temperature range of -10°C to +50°C.
This potentiometer is RoHS3 compliant and has an MSL rating of 1. It is suitable for applications requiring precise resistance control and a reliable mechanical interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns PDB182-GTRB1-504MN potentiometer has a resistance value of 500k ohms.
The tolerance for the PDB182-GTRB1-504MN potentiometer is ±20%.
The power rating for the PDB182-GTRB1-504MN potentiometer is 0.06W.
The operating temperature range for the PDB182-GTRB1-504MN potentiometer is -10°C to +50°C.
The PDB182-GTRB1-504MN features a knurled shaft.
Yes, the PDB182-GTRB1-504MN is RoHS3 Compliant.
