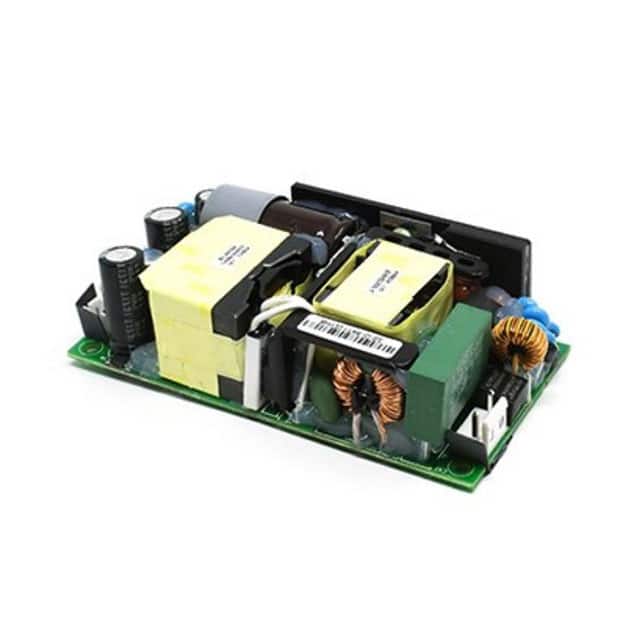

The PDAM240-14A-H from TT Electronics is an open frame AC/DC power supply designed for demanding applications. It delivers a stable 24V output with a current rating of 10A, supporting up to 240W of power under forced air conditions.
This converter features a universal input and is suitable for both ITE (Commercial) and Medical applications, boasting safety approvals from CB, CE, and cURus. It offers high efficiency up to 94% and includes features like DC input capability, PFC, and a standby output.
With dimensions of 104.1mm x 52.1mm x 27.6mm, it is designed for chassis mounting. The unit provides 4000VAC input to output isolation and operates within a temperature range of -30°C to 70°C with derating. It meets standard requirements including 60601-1, 60950-1, and 62368-1.
The output voltage is 24V and the output current is 10A.
The nominal power is 160W, which can be increased to 240W with forced air cooling.
The operating temperature range is -30°C to 70°C with derating.
The efficiency is up to 94%.
The input-to-output isolation is 4000VAC.
The dimensions are 104.1mm x 52.1mm x 27.6mm.
It uses chassis mount.
