Mfr Part #:

PD86-3-1180-TMCL

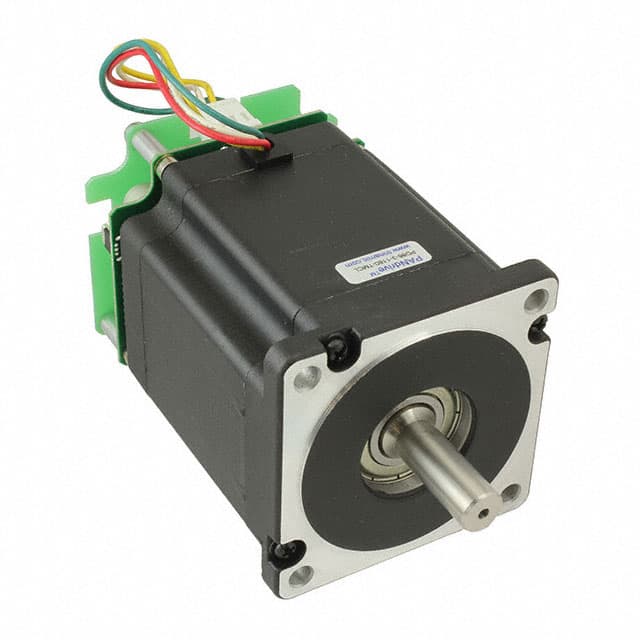

Name: PD86-3-1180-TMCL
Brand: Trinamic Motion Control GmbH
SKU: PD86-3-1180-TMCL

Description:

STEPPER MOTOR HYBRID BIPOLAR 48V

Stock on Request

PD86-3-1180-TMCL Description

Short technical summary and product information.

STEPPER MOTOR HYBRID BIPOLAR 48V

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Trinamic Motion Control GmbH

PANDRIVE NEMA34, 48V, 7.0NM

Trinamic Motion Control GmbH

PANDRIVE NEMA34, 48V, 7.0NM

Trinamic Motion Control GmbH

STEPPER MOTOR HYBRID BIPOLAR 48V

Category	Stepper Motors
Manufacturer Name	Trinamic Motion Control GmbH
Coil Resistance	0.45 Ω
Coil Type	Bipolar
Current Rating (Amps)	5.5 A
Diameter	0.500" (12.70mm)
Features	Integrated Controller, Flatted Shaft
Length	1.310" (33.27mm)
Mounting Hole Spacing	2.740" (69.60mm)
NEMA Frame Size	34
Size	Square - 3.382" x 3.382" (85.90mm x 85.90mm)
Step Angle	1.8°
Steps per Revolution	200
Termination Style	Wire Leads with Connector
Torque	991.28 / 7000
Type	Hybrid
Voltage	48VDC
