PD70224ILQ-TR The Microchip Technology PD70224ILQ-TR is a dual MOSFET-based bridge rectifier designed for high efficiency in Power over Ethernet applications. It features a low forward drop and supports up to 57V.
Mfr Part #:

PD70224ILQ-TR

Available from 2 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology PD70224ILQ-TR is a dual MOSFET-based bridge rectifier designed for high efficiency in Power over Ethernet applications. It features a low forward drop and supports up to 57V.
✓ Total Stock: 2,973 pcs
$ Price Range: $0.95

PD70224ILQ-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,800 pcs
On Request
1800 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,173 pcs
On Request
1173 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PD70224ILQ-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
FET Type
Internal Switch(s)
Mounting Type
Operating Temperature
Ratio
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

PD70224ILQ-TR Description

Short technical summary and product information.

The PD70224 IdealBridge™ from Microchip Technology is a dual MOSFET-based full-bridge rectifier. It integrates low RDS(on) N-channel MOSFETs, offering higher efficiency and output power, particularly beneficial for Powered Devices in Power over Ethernet (PoE) systems.



This rectifier boasts a low forward drop of only 192 mV at 0.6 A, significantly outperforming standard diode bridges. It supports currents over 2 A and is designed for IEEE 802.3bt (Type 3 and Type 4), IEEE 802.3at, and IEEE 802.3af standards, as well as legacy standards like UPoE (60 W) and POH (95 W).



The PD70224 includes on-chip drive circuitry for the MOSFETs, including a charge pump for high-side N-channel MOSFETs. It also features "Power present" indicator signals for identifying 4-pair bridge power and a dedicated pin for adapter priority. The device operates over a wide voltage range up to 57 V and has a low leakage current of less than 10 μA during detection.

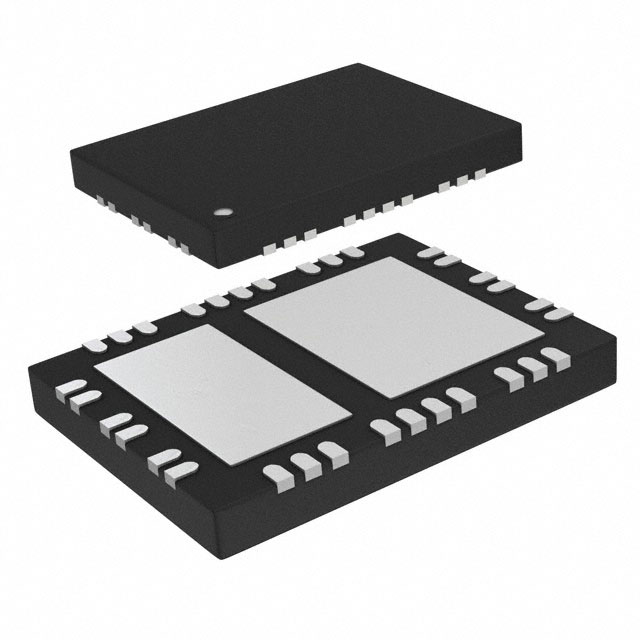

Available in a 40-pin QFN package, the PD70224ILQ-TR is suitable for surface mounting. Its operating temperature range is -40 °C to 85 °C, making it a robust choice for demanding PoE applications.

PD70224ILQ-TR Quick Information

Product Type: Bridge Rectifier
Canonical Name: PD70224 IdealBridge™ Dual MOSFET-Based Bridge Rectifier
Subcategory: Ideal Diode

PD70224ILQ-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PD70224ILQ-TR Estimated Pricing

Qty Low High
1+ $0.95 $0.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

PD70224ILQ-TR Features

  • Dual MOSFET-based bridge rectifier.
  • Low forward drop of 192mV at 0.6A.
  • Supports up to 57V voltage rating.
  • Designed for Power over Ethernet (PoE) applications.
  • Integrated drive circuitry for MOSFETs.

PD70224ILQ-TR Applications

  • Ideal for IEEE 802.3bt PoE standards.
  • Supports Universal PoE (UPOE) applications.
  • Used in Power over HDBase-T (POH).
  • Suitable for 4-pair PoE systems.
  • Enables physical layer power identification.

PD70224ILQ-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the PD70224ILQ-TR?

The PD70224ILQ-TR has a maximum voltage rating of 57V.

What is the current handling capability of the PD70224ILQ-TR?

The PD70224ILQ-TR can handle a nominal current of 1.5A.

What is the typical forward voltage drop for this bridge rectifier?

The typical forward drop for the PD70224ILQ-TR is 192mV at 0.6A.

What type of MOSFETs are used in the PD70224ILQ-TR?

The PD70224ILQ-TR uses N-Channel MOSFETs.

What is the operating temperature range for the PD70224ILQ-TR?

The operating temperature range is -40°C to 85°C.

What package type is the PD70224ILQ-TR available in?

The PD70224ILQ-TR is available in a 40-TFQFN Exposed Pad, 32 Leads package.

What applications is the PD70224ILQ-TR designed for?

The PD70224ILQ-TR is designed for Power over Ethernet (PoE) applications, including IEEE 802.3af/at/bt, UPOE, and POH.
