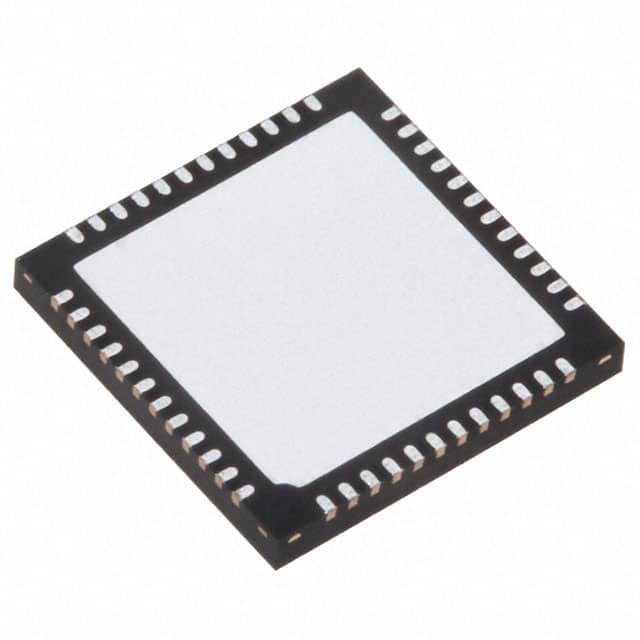

PD69104BILQ-TR The Microsemi Corporation PD69104BILQ-TR is a 4-channel Power Over Ethernet (PoE) Controller. It operates with a supply voltage of 44V to 57V and supports PoE+ and PoE standards.
Mfr Part #:

PD69104BILQ-TR

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The Microsemi Corporation PD69104BILQ-TR is a 4-channel Power Over Ethernet (PoE) Controller. It operates with a supply voltage of 44V to 57V and supports PoE+ and PoE standards.
✓ Total Stock: 50 pcs
$ Price Range: $1.57

PD69104BILQ-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PD69104BILQ-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Auxiliary Sense
Current
Internal Switch(s)
Mounting Type
Number of Channels
Operating Temperature
Power
SVHC Present
Standards
Supplier Device Package
Type
Voltage
View Similar Products (0)

PD69104BILQ-TR Description

Short technical summary and product information.

The PD69104BILQ-TR from Microsemi Corporation is an integrated circuit designed as a Power Over Ethernet (PoE) Controller. This device features 4 channels and supports both 802.3at (PoE+) and 802.3af (PoE) standards, making it suitable for a wide range of PoE applications.



Key electrical specifications include a supply voltage range of 44V to 57V and a maximum power output of 25.5W. The controller operates with a supply current of 10mA and features internal switches. It is designed for surface mount applications and comes in a 48-VFQFN exposed pad package, with the supplier device package specified as 48-QFN (8x8).



The operating temperature range for this component is -10°C to 85°C. It is classified under Integrated Circuits (ICs) and specifically within the Power Management (PMIC) category, under Power Over Ethernet (PoE) Controllers.



This PoE controller is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. The REACH status is noted as unaffected.

PD69104BILQ-TR Quick Information

Product Type: Power Over Ethernet (PoE) Controller
Canonical Name: PD69104BILQ-TR Power Over Ethernet (PoE) Controller
Subcategory: Power Over Ethernet (PoE) Controllers

PD69104BILQ-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PD69104BILQ-TR Estimated Pricing

Qty Low High
1+ $1.57 $1.57

Estimated market price range - modelled values for guidance only, not live distributor offers.

PD69104BILQ-TR Features

  • Four-channel PoE controller IC.
  • Supports 802.3at and 802.3af standards.
  • Operates from 44V to 57V supply voltage.
  • Maximum power output of 25.5W.
  • Surface mountable 48-QFN package.

PD69104BILQ-TR Applications

  • Power sourcing equipment.
  • PoE enabled network devices.
  • Industrial automation systems.
  • Power over Ethernet infrastructure.

PD69104BILQ-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the PD69104BILQ-TR?

44V to 57V.

What package is the PD69104BILQ-TR available in?

48-VFQFN Exposed Pad (48-QFN 8x8).

What is the operating temperature range of the PD69104BILQ-TR?

-10°C to 85°C.

How many channels does the PD69104BILQ-TR have?

4 channels.

What is the power output per channel?

25.5W.

Does the PD69104BILQ-TR have internal switches?

Yes.

What PoE standards does the PD69104BILQ-TR support?

IEEE 802.3at (PoE+) and 802.3af (PoE).
