| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,620 pcs
|
1620 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,124 pcs
|
1124 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
517 pcs
|
517 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Auxiliary Sense | |
| Current | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Power | |
| Standards | |
| Supplier Device Package | |
| Type | |
| Voltage |

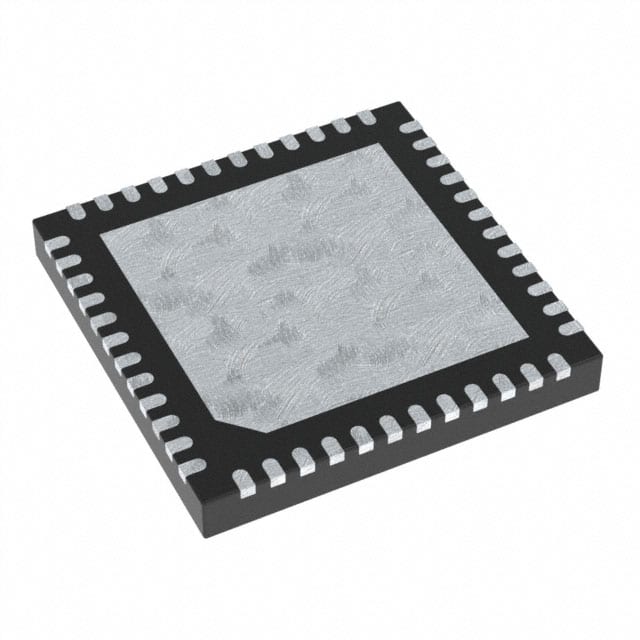

The PD69104B1ILQ-TR from Microchip Technology is a 4-channel Power Over Ethernet (PoE) controller designed for efficient power management in network devices. This controller supports both 802.3at (PoE+) and 802.3af (PoE) standards, ensuring compatibility with a wide range of PoE-enabled equipment.
Key electrical specifications include an operating voltage range of 44V to 57V and a power rating of 36W. It features internal switching and auxiliary sensing capabilities, with a current rating of 10mA. The device is designed for surface mount applications and comes in a 48-QFN (8x8) package, specifically a 48-VFQFN Exposed Pad.
Operating within a temperature range of -10°C to 85°C, the PD69104B1ILQ-TR is suitable for various environmental conditions. Its robust design and adherence to PoE standards make it a reliable component for power delivery solutions in networking infrastructure, IP telephony, and wireless access points.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44V to 57V.
48-QFN (8x8) (supplier device package), also described as 48-VFQFN Exposed Pad.
-10°C to 85°C.
4 channels.
IEEE 802.3af (PoE) and 802.3at (PoE+).
Yes, it includes internal switches.
36W.
