| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,207 pcs
|
9207 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Auxiliary Sense | |
| Current | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Standards | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The PD69101ILQ-TR from Microchip Technology is a single-channel Power Sourcing Equipment (PSE) controller designed for Power over Ethernet applications. This IC facilitates the delivery of power over Ethernet cables, supporting both IEEE 802.3af and 802.3at standards.
Key electrical specifications include an operating supply voltage range of 32V to 57V, with a typical supply current of 10mA. It offers a current limit of 425mA and 1.2A, and a maximum output power of 15.4W. The device features an internal switch and auxiliary sense capabilities.

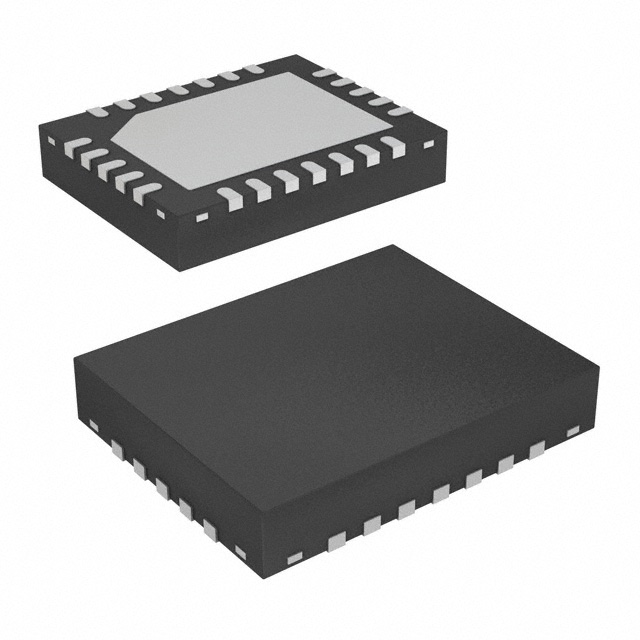

Packaged in a 24-VFQFN exposed pad, the PD69101ILQ-TR is designed for surface mount applications. It operates within a temperature range of -40°C to 85°C. The controller is suitable for applications requiring reliable power delivery over Ethernet infrastructure.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 44V to 57V.
The maximum output power is 15.4W.
The operating temperature range is -40°C to +85°C.
The device is available in a 24-VFQFN Exposed Pad package (24-QFN 4x5mm).
It supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+).
The supply current is 10mA.
