Mfr Part #:

PD57-2-1260-TMCL

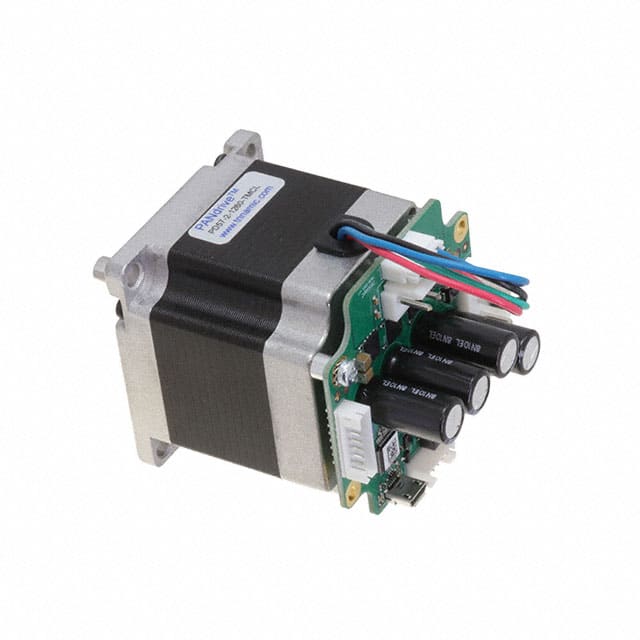

Name: PD57-2-1260-TMCL
Brand: Trinamic Motion Control GmbH
SKU: PD57-2-1260-TMCL

Description:

PANDRIVE NEMA23, 48V, 1.01NM

Stock on Request

PD57-2-1260-TMCL Description

Short technical summary and product information.

PANDRIVE NEMA23, 48V, 1.01NM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Stepper Motors
Manufacturer Name	Trinamic Motion Control GmbH
Coil Type	Bipolar
Current Rating (Amps)	2.8 A
Diameter	0.250" (6.35mm)
Features	Integrated Controller, Flatted Shaft
Length	0.945" (24.00mm)
Mounting Hole Spacing	1.856" (47.14mm)
NEMA Frame Size	23
Operating Temperature	-20°C ~ 50°C
Size	Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Step Angle	1.8°
Steps per Revolution	200
Termination Style	Wire Leads with Connector
Torque	143.03 / 1010
Type	Hybrid
Voltage	2.3VDC
