Mfr Part #:

PD20-1-1210

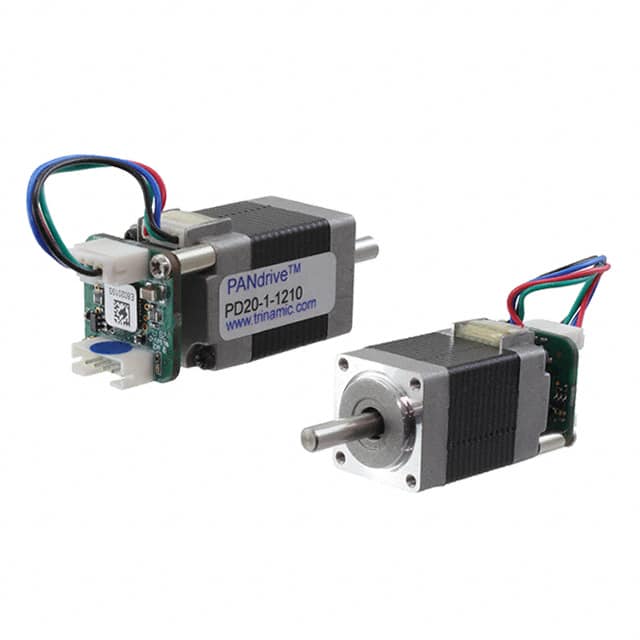

Name: PD20-1-1210
Brand: Trinamic Motion Control GmbH
SKU: PD20-1-1210

Description:

PANDRIVE NEMA08, 24V, 1.75NCM

Stock on Request

PD20-1-1210 Description

Short technical summary and product information.

PANDRIVE NEMA08, 24V, 1.75NCM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Stepper Motors
Manufacturer Name	Trinamic Motion Control GmbH
Accuracy	±5%
Coil Resistance	6.5 Ω
Coil Type	Bipolar
Current Rating (Amps)	600 mA
Diameter	0.157" (4.00mm)
Features	Integrated Controller, Round Shaft
Length	0.591" (15.00mm)
Mounting Hole Spacing	0.630" (16.00mm)
NEMA Frame Size	8
Operating Temperature	-20°C ~ 50°C
Size	Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Step Angle	1.8°
Steps per Revolution	200
Termination Style	Connector
Torque	2.48 / 17.5
Type	Hybrid
Voltage	24VDC
