| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Response Time | |
| Spectral Range | |
| Voltage | |
| Wavelength |

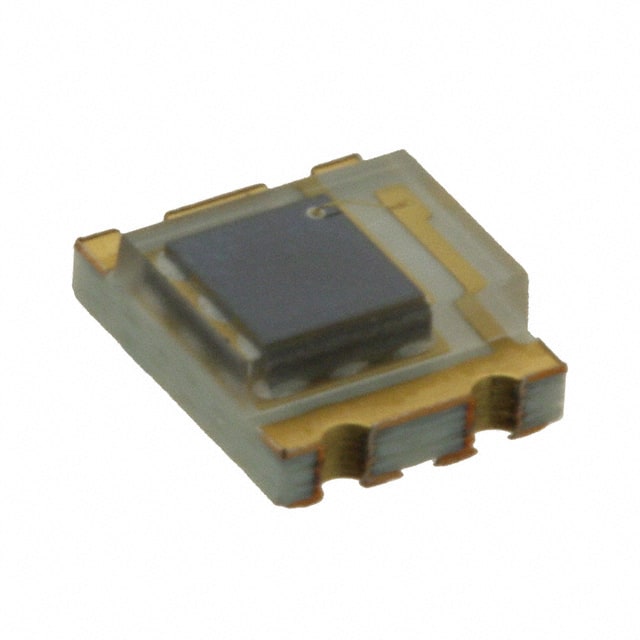

The Everlight Electronics PD15-22C/TR8 is a high-speed, high-sensitivity PIN photodiode designed for optical detection applications. It is spectrally matched to visible and infrared emitting diodes, with a peak sensitivity wavelength of 940nm and a spectral range of 400nm to 1100nm.
This photodiode offers a fast response time of 10ns, a maximum reverse voltage rating of 32V, and a typical dark current of 10nA. Its typical capacitance is 6pF at 1MHz and 5V reverse bias.
The PD15-22C/TR8 is molded in a water-clear plastic and comes in a miniature flat top-view SMD package, measuring 3.2x2.7mm. It is designed for surface mounting.
Key applications include high-speed photo detection, copiers, and game machines. The device operates within an ambient temperature range of -25°C to 85°C and has a Pb-free construction.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak sensitivity wavelength is 940 nm.
The maximum reverse voltage is 32 V.
The response time is 10 ns.
It is in a 4-SMD, No Lead package.
The operating temperature range is -25°C to 85°C.
