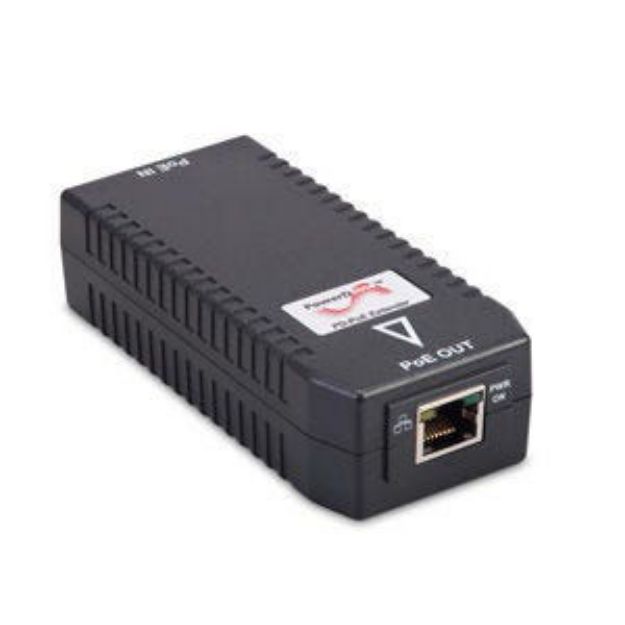

The Microchip Technology PD-POE-EXTENDER is a cost-effective solution for extending Ethernet network range beyond the standard 100m. This PoE Extender delivers both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m, while adhering to IEEE PoE and Data standards.
Key technical specifications include support for 10/100/1000Mbps data rates. It provides 802.3at power levels, delivering up to 25.5W. The device is powered via its PoE input, eliminating the need for local power, which simplifies installation and reduces costs. Extenders can be cascaded to achieve a total range of up to 500m.
Installation is plug-and-play, requiring no configuration. This makes it suitable for extending PoE range for devices like IP cameras and wireless access points in various network setups.
The PoE Extender supports 10/100/1000Mbps data rates.
The PoE Extender delivers up to 25.5W of 802.3at power.
It provides 802.3at power levels when powered by a PowerDsine 95xx Midspan and 802.3af power levels when powered by any 802.3at source.
The PoE Extender extends the PoE range by an additional 100m, for a total of up to 200m from the source. Extenders can be cascaded to reach up to 500m.
No, the PoE Extender does not require local power and is powered via the PoE input.
