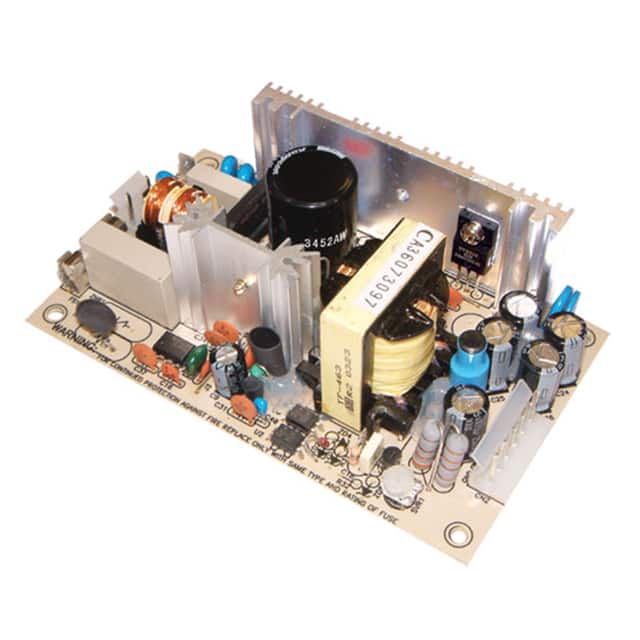

The Mean Well USA PD-65B is a 66W dual output AC/DC converter designed for ITE (Commercial) applications. It operates with an input voltage range of 90-264 VAC and offers an efficiency of 81% at full load.
This open frame converter features chassis mounting and provides two outputs, specified as 5V and 24V, with a maximum current of 2A for one output. Key electrical specifications include a wide operating temperature range of -10°C to 60°C (with derating), a hold-up time of 83 ms, and a set-up time of 601 ms at 230 VAC.
Protection features include overload protection that triggers at 86W and over-voltage protection at 6.16V. The unit is certified by CB, CE, cURus, and TUV, ensuring compliance with various safety standards. Its dimensions are 127.0mm x 76.0mm x 42.0mm.
The PD-65B has dual outputs, specified as 5V and 24V.
The PD-65B has a power rating of 66W.
The efficiency of the PD-65B is 81% at full load with a 230 VAC input.
The operating temperature range for the PD-65B is -10°C to 60°C, with derating.
The dimensions of the PD-65B are 127.0mm x 76.0mm x 42.0mm.
