| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

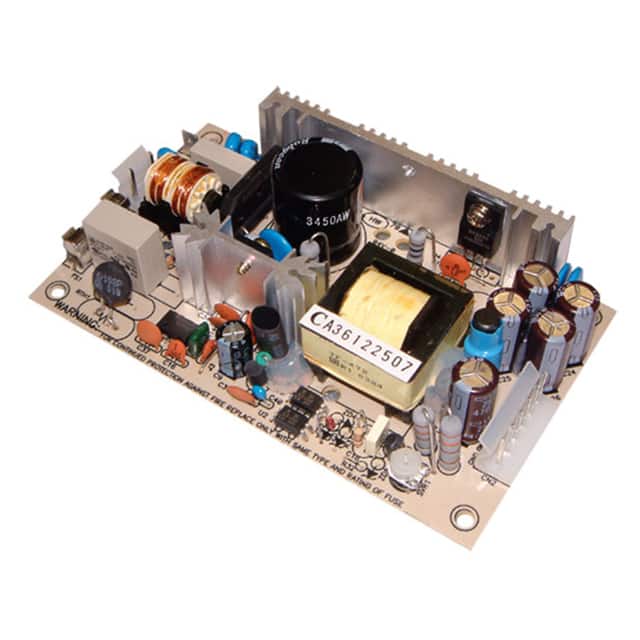

The Mean Well USA PD-45B is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 45W with a 24V output voltage and a current rating of 1.2A.
Key features include adjustable output and universal input, making it versatile for various power supply needs. The converter operates within a temperature range of -10°C to 60°C with derating. Its dimensions are 127.0mm in length, 76.0mm in width, and 28.0mm in height.
This model has two outputs and is chassis mountable. It boasts an efficiency of 78% and carries approvals from CB, CE, cURus, and TUV, indicating compliance with various safety and performance standards.
The output voltage is 24V.
The power rating is 45W.
The operating temperature range is -10°C to 60°C (With Derating).
It uses chassis mount.
The dimensions are 127.0mm (Length) x 76.0mm (Width) x 28.0mm (Height).
