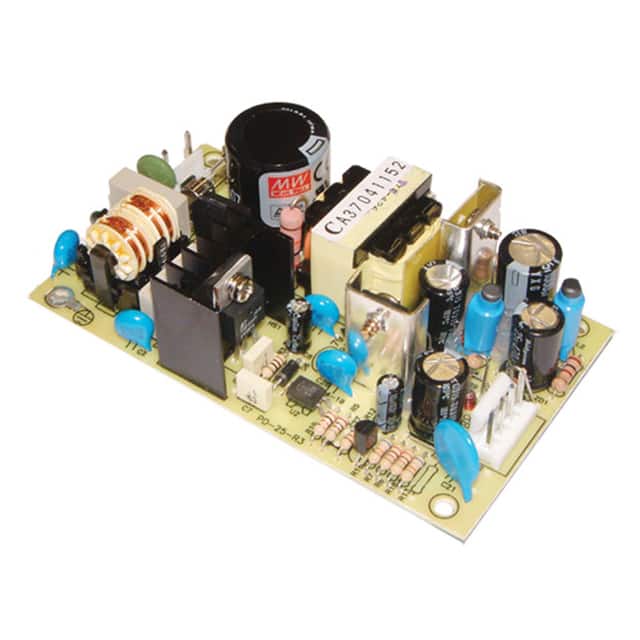

PD-25A The Mean Well USA PD-25A is a 25W AC/DC converter with a 12V output. It features an open frame design suitable for chassis mounting.
Mfr Part #:

PD-25A

Mfr Name: Mean Well USA
Mean Well USA
The Mean Well USA PD-25A is a 25W AC/DC converter with a 12V output. It features an open frame design suitable for chassis mounting.
Stock on Request

PD-25A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

PD-25A Description

Short technical summary and product information.

The Mean Well USA PD-25A is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers 25W of power with a 12V output voltage and a current rating of 1.2A.



Key electrical specifications include a universal input feature and an efficiency of 71%. The operating temperature range is -10°C to 60°C with derating. This converter has two outputs and is chassis mounted.



Mechanical dimensions are 107.0mm in length, 61.0mm in width, and 28.0mm in height. The PD-25A is compliant with RoHS3 standards and has an MSL rating of 1.

PD-25A Quick Information

Product Type: AC DC Converter
Canonical Name: Mean Well USA PD-25A AC/DC Converter
Subcategory: Open Frame

PD-25A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PD-25A Features

  • 25W open frame AC/DC converter.
  • 12V output voltage.
  • 1.2A current rating.
  • Chassis mount design.
  • RoHS3 compliant.

PD-25A Applications

  • Powers commercial information technology equipment racks.
  • Supplies dual voltage rails for industrial control panels.
  • Integrates into space constrained metal enclosure designs.
  • Supports global deployment with universal input compatibility.

PD-25A FAQs

5 frequently asked questions generated from this part’s specifications.
What is the power output of the PD-25A converter?

The PD-25A converter has a power output of 25W.

What is the output voltage of the PD-25A?

The PD-25A has an output voltage of 12V.

What is the operating temperature range for the PD-25A?

The operating temperature range for the PD-25A is -10°C to 60°C with derating.

What type of mounting does the PD-25A support?

The PD-25A supports chassis mount.

What are the dimensions of the PD-25A?

The dimensions of the PD-25A are 107.0mm x 61.0mm x 28.0mm.
