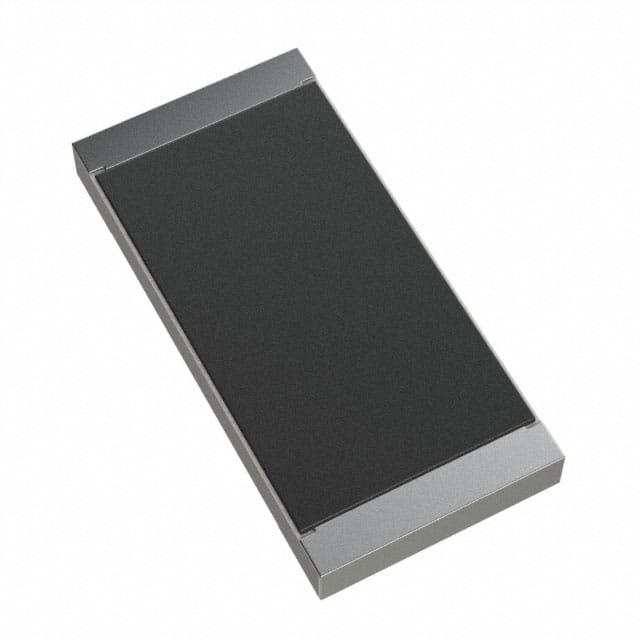

PCS2512DR0100ET The Ohmite PCS2512DR0100ET is a 2W chip resistor with a resistance of 0.010 Ohms and a tolerance of ±0.5%. It features a current sense metal film construction.
Mfr Part #:

PCS2512DR0100ET

Available from 1 distributors
Mfr Name: Ohmite
Ohmite
The Ohmite PCS2512DR0100ET is a 2W chip resistor with a resistance of 0.010 Ohms and a tolerance of ±0.5%. It features a current sense metal film construction.
✓ Total Stock: 535 pcs
$ Price Range: $0.02

PCS2512DR0100ET Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
535 pcs
On Request
535 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PCS2512DR0100ET Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

PCS2512DR0100ET Description

Short technical summary and product information.

This Ohmite PCS2512DR0100ET is a surface mount chip resistor designed for current sensing applications. It offers a power rating of 2W and a low resistance value of 0.010 Ohms with a tight tolerance of ±0.5%.



The resistor operates within a temperature range of -55°C to 170°C and has a temperature coefficient of ±50ppm/°C. Its metal film composition ensures reliable performance.



The component comes in a 2512 (6432 Metric) package size, measuring 6.35mm in length and 3.05mm in width, with a height of 0.66mm. It has two terminations and is supplied on tape and reel.



Key electrical characteristics include its current sense capability, making it suitable for monitoring current in various electronic circuits.

PCS2512DR0100ET Quick Information

Product Type: Chip Resistor - Surface Mount
Canonical Name: Ohmite PCS2512DR0100ET Chip Resistor - Surface Mount
Subcategory: Surface Mount

PCS2512DR0100ET Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PCS2512DR0100ET Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

PCS2512DR0100ET Features

  • 2W power rating for demanding applications.
  • Low 0.010 Ohm resistance value.
  • Tight ±0.5% tolerance for accuracy.
  • Current sense metal film construction.
  • 2512 package for surface mounting.

PCS2512DR0100ET Applications

  • Ideal for current monitoring circuits.
  • Suitable for power supply applications.
  • Used in battery management systems.
  • Applicable in motor control circuits.

PCS2512DR0100ET FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the Ohmite PCS2512DR0100ET?

The resistance value is 10 mΩ.

What is the power rating of the PCS2512DR0100ET resistor?

The power rating is 2W.

What is the tolerance of the Ohmite PCS2512DR0100ET?

The tolerance is ±0.5%.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 170°C.

What package size is the Ohmite PCS2512DR0100ET available in?

It is available in the 2512 (6432 Metric) package size.

Does this resistor have current sense capabilities?

Yes, it features current sense capability.
