| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

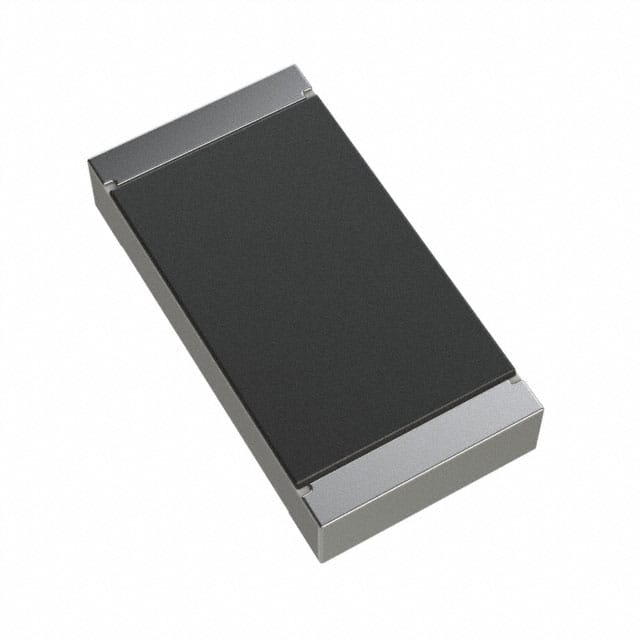

The Ohmite PCS1206DR0200ET is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 20 mΩ with a tight tolerance of ±0.5%, ensuring precise current sensing capabilities.
This resistor is built to handle 1W of power and operates within a wide temperature range of -55°C to 170°C. The component comes in a standard 1206 package size, measuring 3.20mm in length and 1.65mm in width, with a height of 0.68mm. Its metal film composition and 2 terminations make it suitable for applications requiring current sensing.
The PCS1206DR0200ET has a temperature coefficient of ±50ppm/°C, contributing to its stability under varying thermal conditions. It is classified under the Chip Resistor - Surface Mount category, making it a versatile component for circuit design and integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Ohmite PCS1206DR0200ET resistor is 20 mΩ.
The tolerance of the PCS1206DR0200ET resistor is ±0.5%.
The power rating for the Ohmite PCS1206DR0200ET is 1W.
The operating temperature range for this resistor is -55°C to 170°C.
The PCS1206DR0200ET comes in a 1206 (3216 Metric) package.
The dimensions of the PCS1206DR0200ET resistor are 3.20mm in length, 1.65mm in width, and 0.68mm in height.
