Mfr Part #:

PCS.26.A

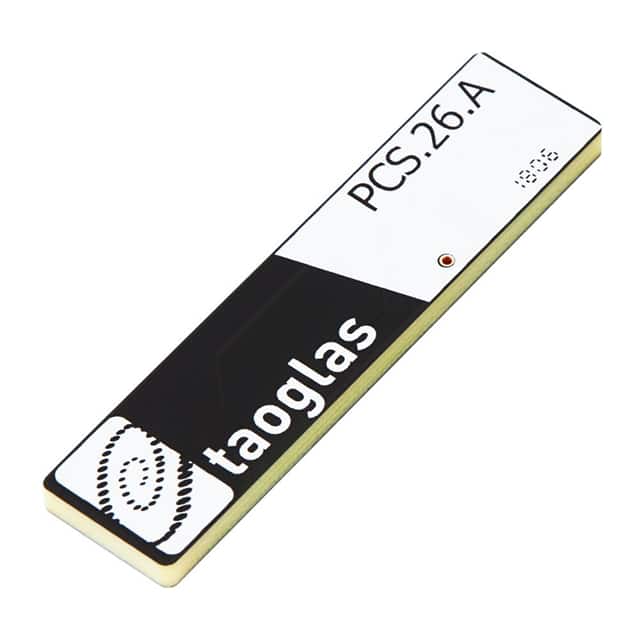

Name: PCS.26.A
Brand: Taoglas Limited
SKU: PCS.26.A

Mfr Name: Taoglas Limited

Description:

HAVOK LOW PROFILE LTE/CELLULAR S

Stock on Request

PCS.26.A Description

Short technical summary and product information.

HAVOK LOW PROFILE LTE/CELLULAR S

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Taoglas Limited
Antenna Type	Chip
Applications	CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
Frequency (Center	657.5MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 4.495GHz
Frequency Group	Wide Band
Frequency Range	617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
Gain	6.67dBi, 2.54dBi, 3.53dBi, 3.75dBi, 4.85dBi, 3.99dBi, 4.26dBi, 3.86dBi
Height (Max)	0.118" (3.00mm)
Mounting Type	Surface Mount
Number of Bands	8
Power	5 W
RF Family	Cellular
Return Loss	-7dB, -7dB, -6dB
Termination	Solder
