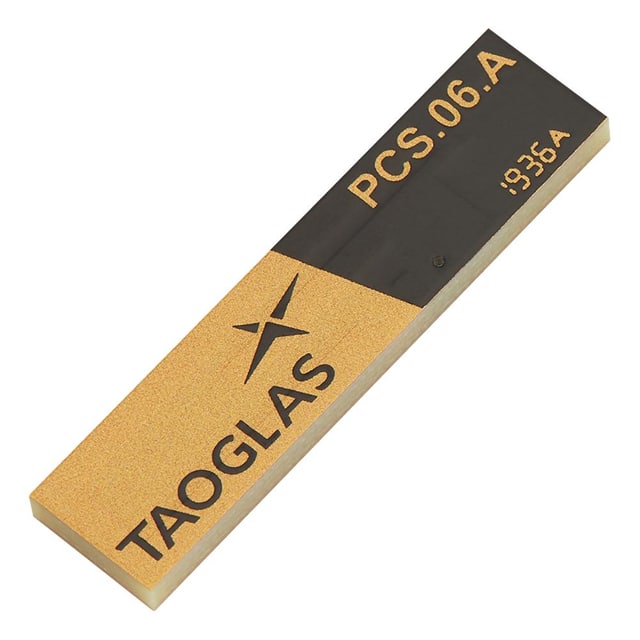

The Taoglas Limited PCS.06.A is a low-profile, SMD dielectric antenna designed for direct PCB mounting. It operates across a wide frequency band, covering 698MHz to 960MHz and 1710MHz to 2690MHz, making it suitable for various cellular applications including CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, and WCDMA.
This chip antenna offers a maximum power rating of 5W and features a surface mount termination style. Its compact dimensions and ease of integration via pick-and-place reflow soldering make it an efficient solution for embedded devices. The antenna is recommended for use with a ground plane length of 120mm or more for optimal efficiency.
Key electrical specifications include a gain ranging from -0.21dBi to 3.72dBi across its supported bands and a return loss of -7dB to -6dB. The antenna is designed for robust operation within an environmental temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
The RoHS status is RoHS3 Compliant.
The MSL is Level 1 Unlimited.
It supports frequencies from 698MHz to 960MHz and 1710MHz to 2690MHz.
The maximum power rating is 5W.
It requires a Surface Mount.
