| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Isolation | |
| Length | |
| Medical Grade | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

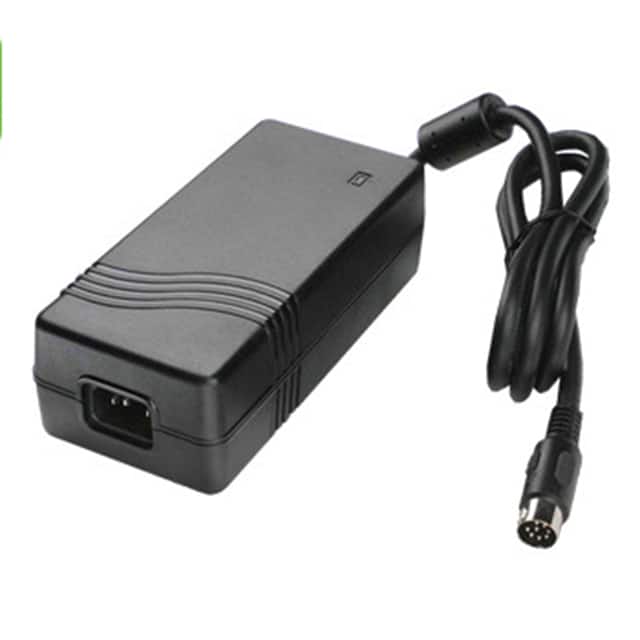

The XP Power PCM50US48 is a versatile 50W AC/DC desktop power supply designed for international use, accepting a wide input voltage range of 90-264 VAC.
This adapter features a single 48V output with a maximum current of 1.04A, delivering a total power of 50W. It boasts a typical efficiency of 80% for single output models and includes essential protections such as overvoltage and overcurrent protection with auto-recovery.
Designed with global applications in mind, the PCM50US48 meets worldwide medical approvals and complies with EMC standards like EN55032 Level B. Its operating temperature range is 0°C to 70°C, with derating above 50°C. The unit features an IEC 320-C14 input connector and a DIN 5-pin output connector.
Key specifications include 4000 VAC input-to-output isolation, low earth leakage current, and a typical MTBF of 100,000 hours. The compact dimensions are 146.0mm x 76.0mm x 43.0mm, making it suitable for various integration needs.
90-264 VAC.
0°C to 70°C with derating from 100% load at 50°C to 50% load at 70°C.
48V at 1.04A.
80% typical for single output models.
Overvoltage protection (112-132%) and overcurrent protection (110-200% with auto recovery).
146.0mm x 76.0mm x 43.0mm.
4000 VAC input to output, 1500 VAC input to ground, 500 VAC output to ground.
