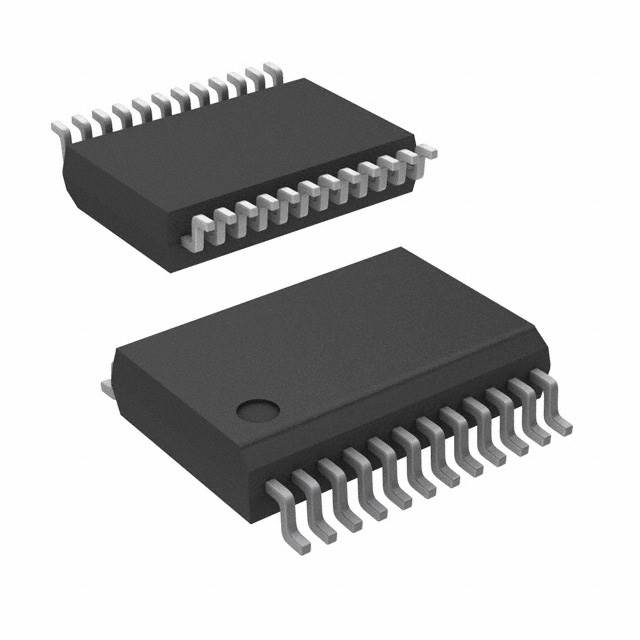

The PCM3500E is a 16-bit audio CODEC designed by Texas Instruments, belonging to the SoundPlus™ series. This interface IC integrates one ADC and one DAC, supporting a serial interface for data transfer. It operates with a supply voltage of 3.3V, with a minimum of 2.7V and a maximum of 3.6V.
The device offers a sampling rate of 26kS/s and a resolution of 16 bits. It boasts a Signal-to-Noise Ratio (SNR) of 88dB, indicating good audio fidelity. The operating temperature range for the PCM3500E is from -25°C to 85°C.
Packaged in an SSOP, the PCM3500E is supplied in a rail/tube format with a standard package quantity of 58 units. Its low supply current of 12uA and power consumption of 30mW make it suitable for power-sensitive applications. The component is RoHS3 compliant and Lead Free.
This audio CODEC is designed for various audio interface applications where a compact, efficient, and high-performance solution is required. Its specifications make it a versatile component for embedded audio systems.
The PCM3500E has a resolution of 16 bits.
The operating supply voltage for the PCM3500E is 3.3V, with a minimum of 2.7V and a maximum of 3.6V.
The PCM3500E operates within a temperature range of -25°C to 85°C.
The Signal to Noise Ratio (SNR) for the PCM3500E is 88dB.
The PCM3500E is available in an SSOP package.
