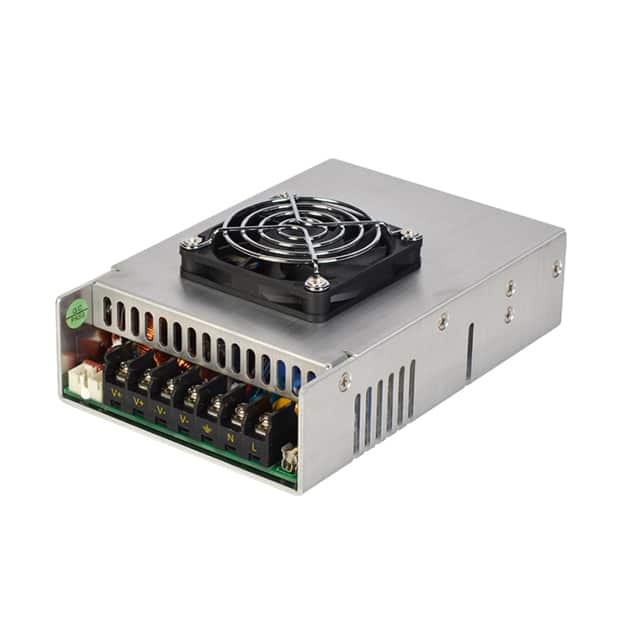

The CUI Inc. PCM-400-15-CF is an enclosed AC-DC power supply designed for ITE (Commercial) applications. It delivers up to 400W of continuous power with a nominal output voltage of 15V and a maximum output current of 14.67A. The unit boasts an efficiency of up to 85% and features active power factor correction (PFC).
This power supply operates with a universal input voltage range of 90-264 Vac and a frequency range of 47-63 Hz. It includes features such as adjustable output, remote ON/OFF control, and a standby output. The PCM-400-15-CF is designed for chassis mounting and has dimensions of 152.4mm x 101.6mm x 54.5mm.
Safety and compliance are addressed with an isolation voltage of 3 kV and adherence to standards including 55024, 60950-1, 61000-3-2, 61000-3-3, and 62368-1. The operating temperature range is 0°C to 70°C with derating. Protection features include over voltage, short circuit, over current, and over temperature protection.
The nominal output voltage is 15 Vdc.
The maximum output current is 14.67 A.
The power rating is 400W.
The typical efficiency is 85%.
The operating temperature range is 0°C to 70°C with derating.
It is designed for chassis mounting.
The dimensions are 152.4mm (Length) x 101.6mm (Width) x 54.5mm (Height).
