Mfr Part #:

PCL712AS

Name: PCL712AS
Brand: Conxall/Switchcraft
SKU: PCL712AS

Mfr Name: Conxall/Switchcraft

Description:

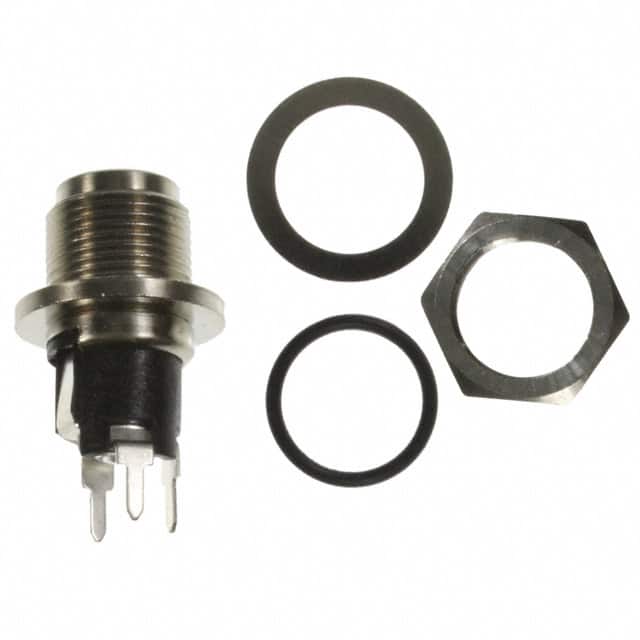

CONN PWR JACK 2.5X5.5MM SOLDER

Stock on Request

PCL712AS Description

Short technical summary and product information.

CONN PWR JACK 2.5X5.5MM SOLDER

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Power Connectors
Manufacturer Name	Conxall/Switchcraft
Actual Diameter	0.098" (2.50mm ID)
Connector Type	Jack
Current Rating (Amps)	5 A
Features	Mounting Hardware, Thread Lock
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Ingress Protection	IP68
Internal Switch(s)	Single Switch, Normally Closed
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Positions	2 Conductors, 3 Contacts
Shielding	Unshielded
Termination	Solder
Voltage	30VDC
