| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Resistance | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Failure Rate | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

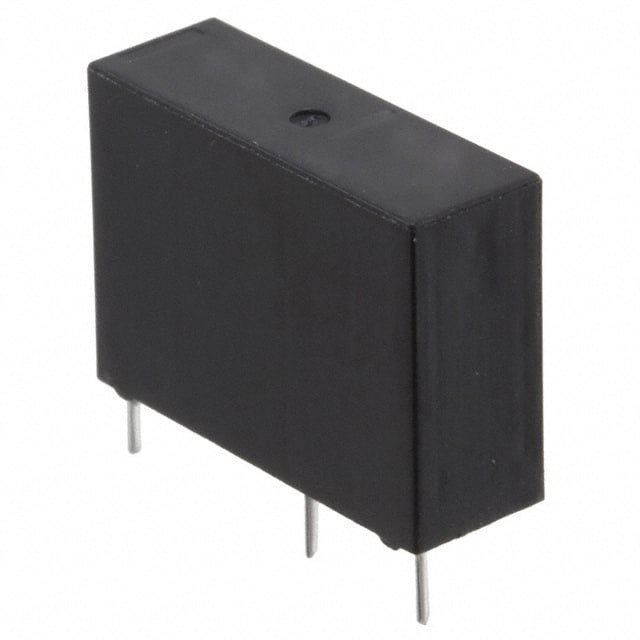

The TE Connectivity PCJ-112D3MH301 is a general purpose relay designed for various applications. It features a contact rating of 3A and a switching voltage of up to 250VAC or 30VDC.
The relay operates with a 12VDC coil voltage, requiring 16.7 mA of coil current. It has a coil resistance of 720 Ohms, a must-operate voltage of 9 VDC, and a must-release voltage of 0.6 VDC. The operate time is 10 ms and the release time is 4 ms.
Constructed with Silver Nickel (AgNi) contact material, this relay offers a SPST-NO (1 Form A) contact form. It is sealed for protection and has an insulation class of A. The operating temperature range is from -40°C to 85°C.
Designed for through-hole mounting with PC pin termination style, the PCJ-112D3MH301 is supplied in bulk packaging. It is part of the PCJ, OEG series.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 3 A.
The coil voltage is 12 VDC.
It has a SPST-NO (1 Form A) contact form.
The operating temperature range is -40°C to 85°C.
It is designed for through-hole mounting.
