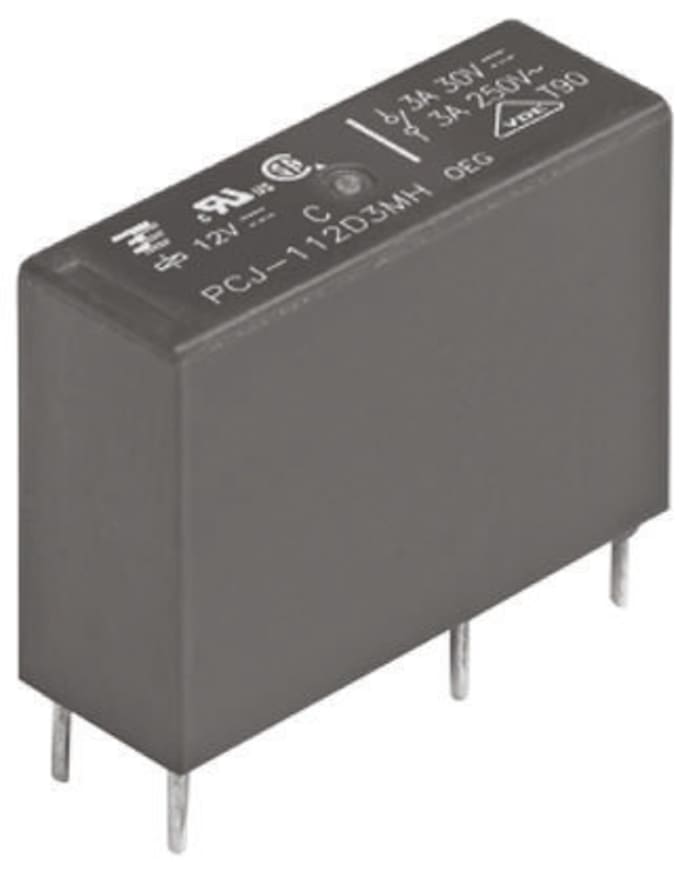

The TE Connectivity PCJ Series PCB Power Relay, part number PCJ-112D3M-WG,000M, is a miniature power relay designed for through-hole PCB mounting. It operates with a 12V DC coil and offers a switching current of 5A.
Key electrical specifications include a switching power of 150W, a switching DC voltage of 30V, and a switching AC voltage of 30V. The coil resistance is 720Ω, and the coil power is a sensitive 200mW. The contact material is Silver Alloy with a contact resistance of 100mΩ.
Mechanically, the relay has dimensions of 15mm height, 10mm width, and 20.4mm length. It is designed for a minimum operating temperature of -40°C and a maximum of 85°C. The relay is manufactured in China and holds approvals including VDE, UL, and CQC.
This series is particularly noted for its 8mm creepage and clearance. Models suffixed with -WG000M, like this one, feature Class F 5A silver nickel contacts in accordance with IEC 60335-1 for domestic appliances. Typical applications include domestic appliances.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12V dc.
The switching current is 5A.
It has an SPST contact configuration.
The dimensions are 15mm height, 10mm width, and 20.4mm length.
The operating temperature range is -40°C to 85°C.
The contact material is Silver Alloy.
The mounting type is PCB.
