| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
126 pcs
|
126 pcs | On Request | 1 | 47 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Termination | |
| Termination Style |

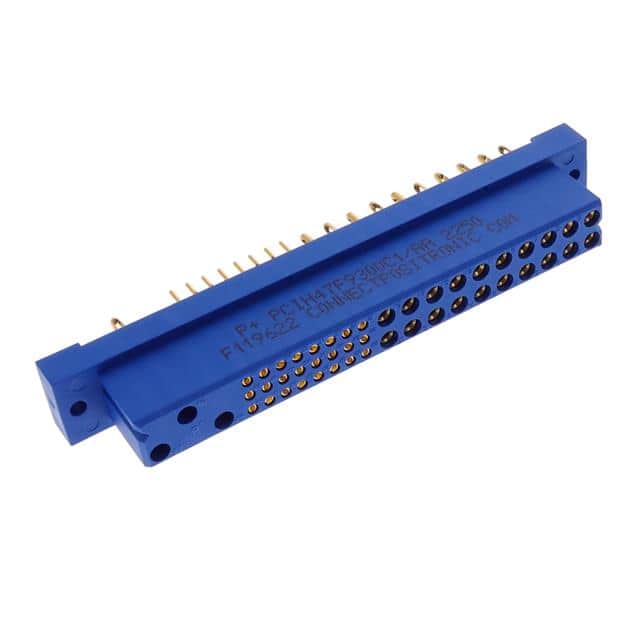

The Positronic PCIH47F9300C1/AA is a CompactPCI® backplane receptacle connector designed for high-density backplane applications. It features 47 positions with a contact layout of 24 signal and 23 power contacts, ensuring reliable signal and power distribution. The connector uses gold contact finish with 30.0µin thickness for excellent conductivity and corrosion resistance.
Mounting is through hole with solder termination, providing secure attachment to the backplane PCB. The connector body is blue for easy identification. It is compliant with RoHS3, MSL 1 (unlimited), and REACH unaffected, making it suitable for environmentally conscious designs.
This connector is ideal for use in CompactPCI® systems, industrial computing, and telecommunications equipment where robust backplane interconnects are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $231.46 | $231.46 |
| 10+ | $196.77 | $196.77 |
| 25+ | $184.47 | $184.47 |
| 50+ | $176.49 | $176.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
47 positions.
Through hole mounting.
CompactPCI®.
24 signal and 23 power contacts.
Gold with 30.0µin thickness.
Solder termination.
Blue.
