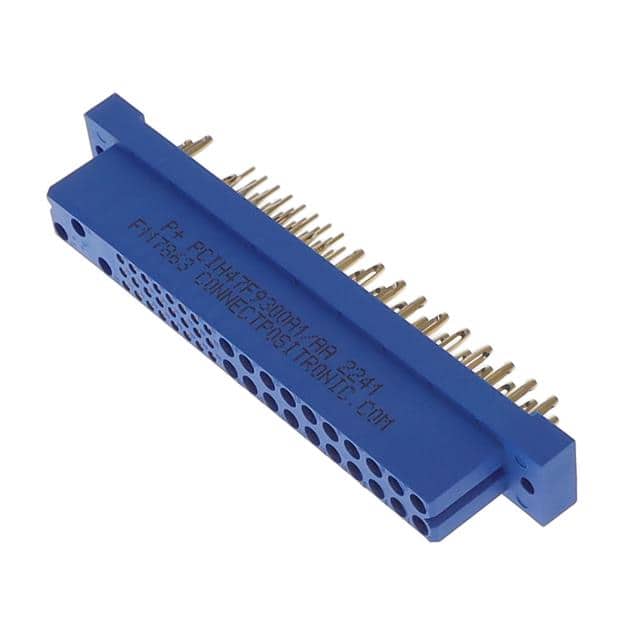

PCIH47F9300A1/AA CompactPCI® backplane connector receptacle with 47 female socket positions. Offers 24 signal and 23 power contacts with solder through-hole termination and gold flash finish.
Mfr Part #:

PCIH47F9300A1/AA

Available from 2 distributors
Mfr Name: Positronic
Positronic
CompactPCI® backplane connector receptacle with 47 female socket positions. Offers 24 signal and 23 power contacts with solder through-hole termination and gold flash finish.
✓ Total Stock: 2,346 pcs
$ Price Range: $71.78 - $99.33

PCIH47F9300A1/AA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,336 pcs
On Request
2336 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PCIH47F9300A1/AA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Layout, Typical
Halogen Free
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
SVHC Present
Termination
View Similar Products (0)

PCIH47F9300A1/AA Description

Short technical summary and product information.

The Positronic PCIH47F9300A1/AA is a CompactPCI® backplane connector designed for high-density signal and power distribution. This receptacle features 47 loaded positions with a 24 signal, 23 power contact layout, providing flexibility for mixed-signal and power applications. The connector uses solder termination and through-hole mounting for secure attachment to printed circuit boards.



Contact finish is gold flash, ensuring reliable conductivity and corrosion resistance. The connector body is blue in color, aiding visual identification. This component is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited) for moisture sensitivity.



Ideal for use in CompactPCI® systems, the connector meets the mechanical and electrical requirements of the standard. The through-hole design provides robust mechanical support, while the solder termination offers a reliable electrical connection. The 47-position layout allows for both signal and power routing in a single connector.

PCIH47F9300A1/AA Quick Information

Product Type: Backplane Connector
Series: PCIH
Canonical Name: CompactPCI® Receptacle, Female Sockets, 47 Position Solder Through Hole
Subcategory: CompactPCI®

PCIH47F9300A1/AA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

PCIH47F9300A1/AA Estimated Pricing

Qty Low High
1+ $99.33 $99.33
10+ $84.43 $84.43
25+ $79.15 $79.15
50+ $75.38 $75.38
100+ $71.78 $71.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

PCIH47F9300A1/AA Features

  • CompactPCI® receptacle connector style.
  • 47 positions with 24 signal and 23 power contacts.
  • Solder through-hole termination for secure mounting.
  • Gold flash contact finish for reliable conductivity.
  • Blue housing for visual identification.

PCIH47F9300A1/AA Applications

  • Suitable for CompactPCI® backplane interconnect systems.
  • Used in telecommunications and industrial computing equipment.
  • Provides mixed signal and power distribution in a single connector.

PCIH47F9300A1/AA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on the PCIH47F9300A1/AA?

47 positions, all loaded.

What is the mounting type?

Through hole.

What is the connector style?

CompactPCI®.

What is the contact layout?

24 signal, 23 power.

What is the contact finish?

Gold flash.

What is the termination method?

Solder.

What is the connector type?

Receptacle, Female Sockets.
