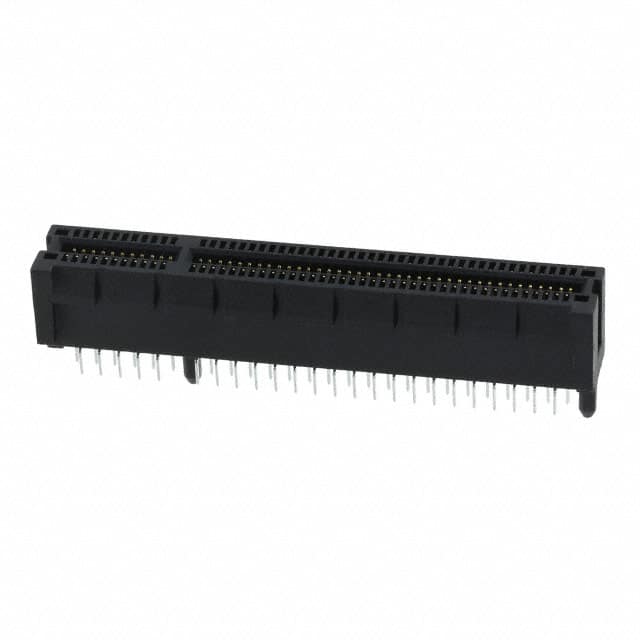

The Samtec PCIE-098-02-F-D-TH is a PCI Express edge card socket designed for high-density interconnect applications. It features 98 positions arranged in 2 rows with a 1.00mm pitch, supporting PCIe 3.0 signaling. The connector uses a through hole mounting style with staggered solder termination for reliable mechanical attachment.
Electrical ratings include 2.4A per pin (2 pins powered) and 215 VAC voltage rating. The operating temperature range spans -55°C to 125°C, suitable for industrial environments. The insulator is made of Liquid Crystal Polymer (LCP) and contacts are phosphor bronze with gold flash plating (3µin) on the contact area and matte tin on the tail.
A board guide feature aids alignment during mating. The connector is designed to mate with 0.062" (1.60mm) thick cards. Packaging is typically tray (inferred). This part is part of Samtec's PCIE series and is compatible with PCIe 3.0 systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.26 | $4.26 |
| 50+ | $3.60 | $3.60 |
| 100+ | $2.93 | $2.93 |
| 500+ | $1.92 | $1.92 |
| 1,000+ | $1.90 | $1.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
98 positions in 2 rows.
1.00mm (0.039 inches).
2.4A per pin (2 pins powered).
215 VAC.
Through hole with staggered solder termination.
-55°C to 125°C.
PCIe 3.0.
