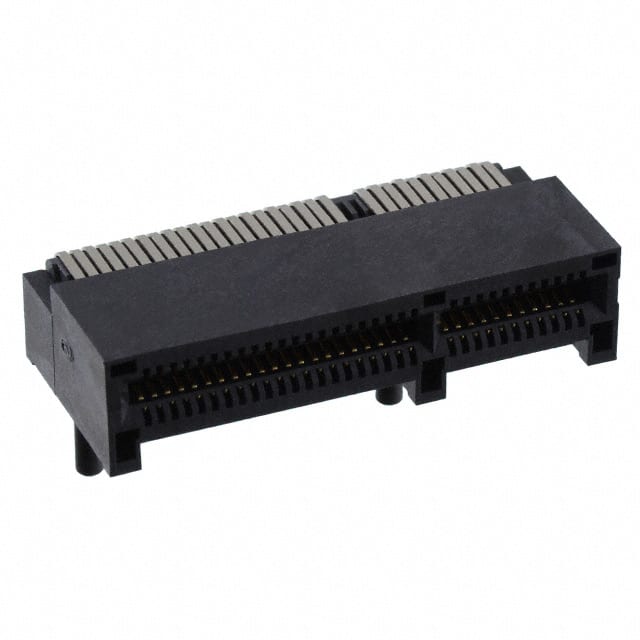

PCIE-064-02-F-D-RA This Samtec Inc. edge card connector, model PCIE-064-02-F-D-RA, offers 64 positions with a 1.00mm pitch and supports PCI Express 3.0. It features a right-angle, through-hole mounting style.
Mfr Part #:

PCIE-064-02-F-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
This Samtec Inc. edge card connector, model PCIE-064-02-F-D-RA, offers 64 positions with a 1.00mm pitch and supports PCI Express 3.0. It features a right-angle, through-hole mounting style.
✓ Total Stock: 2 pcs

PCIE-064-02-F-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PCIE-064-02-F-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Features
Gender
Halogen Free
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
PCI Express Version
Pitch
Read Out
Storage Temperature
Tape & Reel
Termination
Termination Style
View Similar Products (0)

PCIE-064-02-F-D-RA Description

Short technical summary and product information.

The Samtec Inc. PCIE-064-02-F-D-RA is a female PCI Express edge card connector designed for robust connectivity. It features 64 positions arranged in two rows, with a pitch of 1.00mm (0.039 inches).



This connector supports PCI Express 3.0 standards and has a gold contact finish for reliable electrical performance. The card thickness is specified at 1.57mm (0.062 inches).



Designed for through-hole mounting with a right-angle orientation, the PCIE-064-02-F-D-RA utilizes a solder termination method with a staggered configuration. The operating temperature range is from -55°C to 125°C.



Key mechanical features include phosphor bronze contact material and a black housing color. It also includes a board guide for proper alignment during insertion.

PCIE-064-02-F-D-RA Quick Information

Product Type: Edge Card Connector
Series: PCIE
Canonical Name: Samtec Inc. PCIE-064-02-F-D-RA PCI Express 3.0 Edge Card Connector
Subcategory: PCI Express

PCIE-064-02-F-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

PCIE-064-02-F-D-RA Features

  • 64 positions with 1.00mm pitch.
  • Supports PCI Express 3.0 standard.
  • Gold contact finish for durability.
  • Right angle, through hole mounting.
  • Operating temperature -55°C to 125°C.

PCIE-064-02-F-D-RA Applications

  • Ideal for PCIe expansion slots.
  • Suitable for motherboard designs.
  • Used in high-speed data systems.
  • Reliable signal integrity applications.

PCIE-064-02-F-D-RA FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the PCIE-064-02-F-D-RA connector have?

The connector has 64 positions.

What is the pitch of this edge card connector?

The pitch is 1.00mm (0.039").

What mounting type is used for this connector?

It uses Through Hole, Right Angle mounting.

What is the contact finish material?

The contact finish is Gold.

What is the operating temperature range?

The operating temperature is -55°C to 125°C.

What PCI Express version does this connector support?

It supports PCI Express version 3.0.
