| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,757 pcs
|
1757 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Supplier Device Package | |
| Voltage |
The PCI9056-BA66BI G from Broadcom Limited is a high-performance 32-bit, 66MHz PCI Bus Mastering I/O Accelerator. It is designed to provide flexible connectivity and acceleration features for leading-edge PCI and embedded host designs.
This specialized interface IC supports both 32-bit, 66MHz PCI operation and a similar local bus operation, enabling high-speed data transfers. Key features include dynamic DMA descriptor ring management, PCI Power Management support (D3COLD PME), and PICMG 2.1 r2.0 Hot Swap Silicon compatibility. It also includes JTAG boundary scan capabilities.
The PCI9056-BA66BI G is suitable for applications requiring robust I/O acceleration, such as those found in telecom, networking, and I/O adapter designs. It is supplied in a 256-FPBGA (17x17 mm) surface mount package.
With 2 DMA channels and support for up to 7 external PCI masters, this accelerator is engineered for demanding embedded systems. It operates with 3.3V and 5V interfaces, offering versatility in system integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.39 | $6.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PCI9056-BA66BI G operates at 3.3V and 5V.

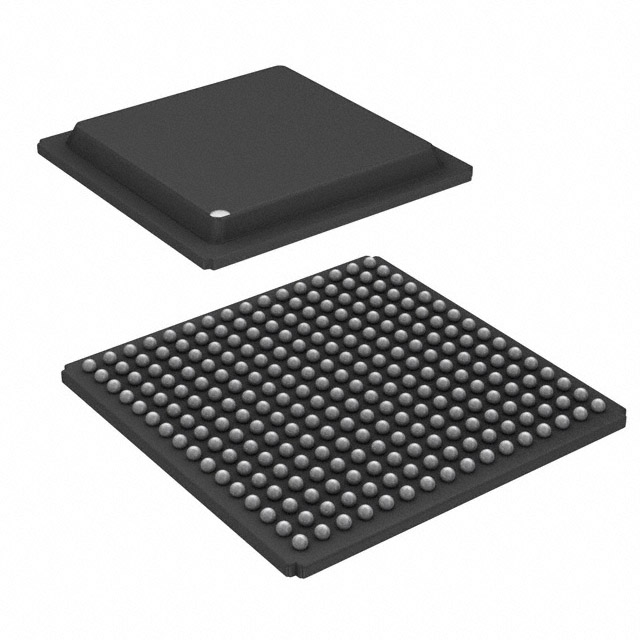

The PCI9056-BA66BI G is supplied in a 256-FPBGA (17x17 mm) package, also referred to as 256-BGA.
The PCI9056-BA66BI G is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the PCI9056-BA66BI G is 1 Unlimited.
The PCI9056-BA66BI G supports 32-bit, 66MHz PCI operation.
The PCI9056-BA66BI G features 2 DMA channels.
The PCI arbiter can support up to 7 external masters.
