| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,700 pcs
|
4700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Interface | |
| Mounting Type | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The Broadcom Limited PCI9030-AA60BI F is a high-performance 32-bit PCI v2.2 compliant I/O accelerator. It supports up to 132MB/s PCI burst transfers and local bus operation up to 60MHz, enabling burst transfers up to 240MB/s.
This SMARTarget™ technology device offers advanced features for simplified design and enhanced performance. Key features include programmable local bus, multiple PCI to Local address spaces, nine programmable GPIOs, and four programmable chip selects. It also supports CompactPCI Hot Swap designs and offers Big/Little Endian conversion.
The PCI9030-AA60BI F is available in a compact 180-pin mBGA package, making it suitable for space-constrained applications. It operates with 3.3V and 5V tolerant PCI signaling and supports PCI v1.1 power management.
This interface IC is ideal for migrating legacy designs to PCI, upgrading current PCI target designs, and developing CompactPCI I/O boards. Its flexibility and performance simplify connectivity, power, and system compatibility challenges.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.39 | $6.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PCI9030-AA60BI F operates with 3.3V and 5V tolerant PCI signaling.

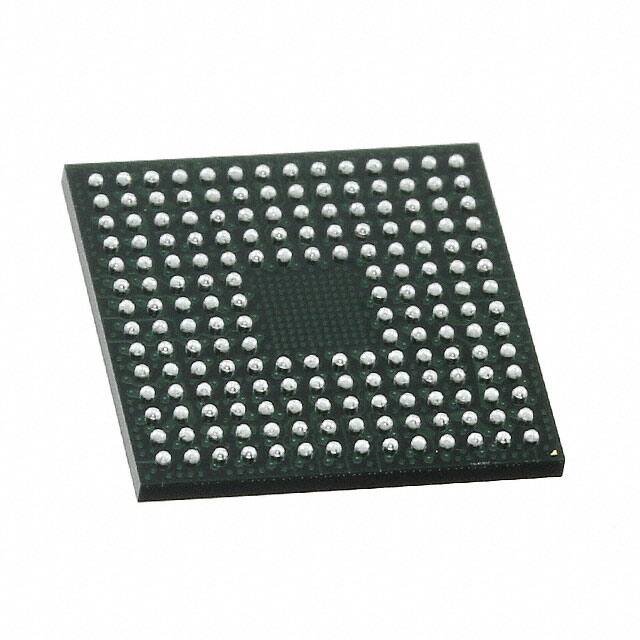

The PCI9030-AA60BI F is available in a 180-UBGA package.
Key features include PCI v2.2 compliance, local bus operation up to 60MHz, SMARTarget technology, and a 180-pin mBGA package option.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
