| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Resistance (DCR) | |
| Dimensions | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Shielding | |
| Tolerance | |
| Type |

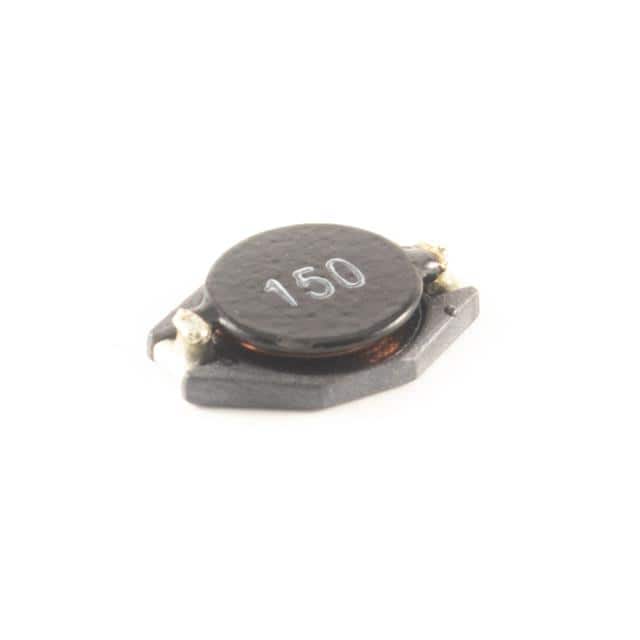

The Allied Components International PCI30-150M-RC is a wirewound surface mount power inductor. It features an inductance value of 15 µH with a tolerance of ±20%, tested at 100 kHz. The inductor has a maximum DC resistance of 120 mOhm and a saturation current rating of 2.3A. It operates within a temperature range of -40°C to 125°C and is unshielded. The component is supplied in tape and reel packaging.
This inductor is suitable for various power applications where compact size and reliable performance are required. Its surface mount design facilitates automated assembly processes. The unshielded construction is typical for many power inductor applications where electromagnetic interference (EMI) is managed through board layout or other components.
Key specifications include its 15 µH inductance, ±20% tolerance, and 2.3A saturation current. The operating temperature range of -40°C to 125°C ensures suitability for a wide array of environmental conditions. The dimensions are 12.95mm x 9.40mm with a maximum height of 3.00mm.
15 µH at 100 kHz.
±20%.
120 mOhm.
2.3 A.
-40°C to 125°C.
Nonstandard.
Unshielded.
