| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Current | |
| Features | |
| Interface | |
| Interrupt Output | |
| Latch-up Performance | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Output Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The PCF8574ARGYR from Texas Instruments is an 8-bit general-purpose remote I/O expander that communicates via the I2C interface. Designed for 2.5V to 6V VCC operation, this device allows microcontrollers to expand their I/O capabilities efficiently.
Key features include an 8-bit quasi-bidirectional I/O port that can function as either input or output without requiring a data-direction control signal. The I/Os have latched outputs with high-current drive capability, suitable for directly driving LEDs. The device also includes an open-drain interrupt output, which is compatible with most microcontrollers. It operates at a maximum clock frequency of 100 kHz and has an operating temperature range of -40°C to 85°C.

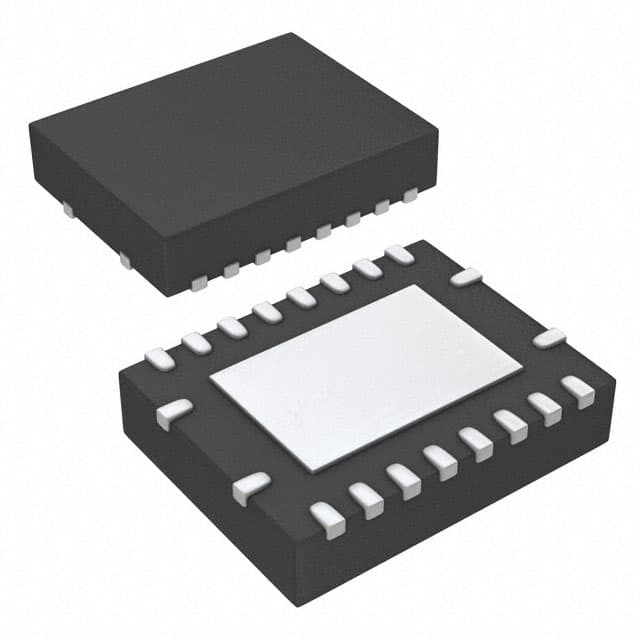

This I/O expander is available in a 20-VQFN Exposed Pad package, suitable for surface mounting. Its low standby-current consumption of 10µA maximum and latch-up performance exceeding 100 mA per JESD 78, Class II, make it a robust choice for various embedded applications.
The PCF8574ARGYR is ideal for applications requiring additional digital I/O pins, such as controlling relays, reading sensors, or expanding user interfaces in embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PCF8574ARGYR operates from 2.5V to 6V.
The operating temperature range is -40°C to 85°C.
The maximum clock frequency is 100 kHz.
Yes, the PCF8574ARGYR features an interrupt output.
The PCF8574ARGYR is available in a 20-VQFN Exposed Pad package.
