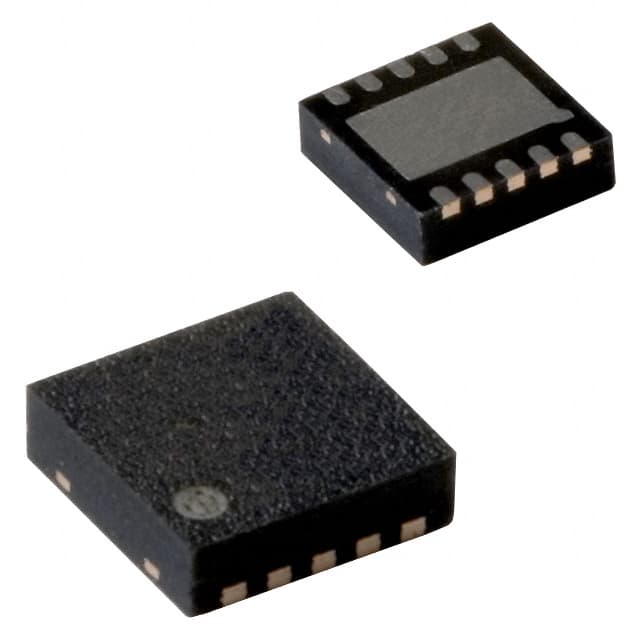

PCF8563BS/4,118 The NXP Semiconductors PCF8563BS/4,118 is a CMOS Real-Time Clock (RTC) and calendar IC. It features an I2C interface and operates over a wide voltage range.
Mfr Part #:

PCF8563BS/4,118

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors PCF8563BS/4,118 is a CMOS Real-Time Clock (RTC) and calendar IC. It features an I2C interface and operates over a wide voltage range.
✓ Total Stock: 20 pcs
$ Price Range: $5.21

PCF8563BS/4,118 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PCF8563BS/4,118 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Date Format
Features
Interface
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Time Format
Type
Voltage
View Similar Products (0)

PCF8563BS/4,118 Description

Short technical summary and product information.

The PCF8563BS/4,118 from NXP Semiconductors is a low-power CMOS Real-Time Clock (RTC) and calendar optimized for battery-powered applications. It provides year, month, day, weekday, hours, minutes, and seconds, utilizing a 32.768 kHz quartz crystal.



This IC supports a 400 kHz two-wire I2C-bus interface for serial communication. Key features include a programmable clock output, alarm and timer functions, a century flag, and an integrated oscillator capacitor. It also incorporates an internal Power-On Reset (POR) and a voltage-low detector.



The PCF8563BS/4,118 is housed in a 10-HVSON (3x3) package, suitable for surface mount applications. It operates over a temperature range of -40°C to 85°C and requires a supply voltage between 1.0 V and 5.5 V. The low backup current makes it ideal for power-sensitive designs.



Applications for this RTC include mobile telephones, portable instruments, electronic metering, and other battery-powered products requiring accurate timekeeping.

PCF8563BS/4,118 Quick Information

Product Type: Real-Time Clock IC
Series: PCF8563
Canonical Name: NXP Semiconductors PCF8563BS/4,118 Real-Time Clock/Calendar IC
Subcategory: Clock/Calendar

PCF8563BS/4,118 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PCF8563BS/4,118 Estimated Pricing

Qty Low High
1+ $5.21 $5.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

PCF8563BS/4,118 Features

  • Low power CMOS Real-Time Clock and calendar.
  • 400 kHz two-wire I2C-bus interface.
  • Provides year, month, day, weekday, hours, minutes, seconds.
  • Includes alarm, timer, and watchdog timer functions.
  • Operates from 1.0 V to 5.5 V supply voltage.

PCF8563BS/4,118 Applications

  • Ideal for mobile telephones.
  • Suitable for portable instruments.
  • Used in electronic metering.
  • Designed for battery powered products.

PCF8563BS/4,118 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the PCF8563BS/4,118?

The operating voltage range is 1.0 V to 5.5 V.

What is the operating temperature range for this RTC IC?

The operating temperature range is -40°C to 85°C.

What type of interface does the PCF8563BS/4,118 use?

It uses a 400 kHz two-wire I2C-bus interface.

What package type is the PCF8563BS/4,118 supplied in?

It is supplied in a 10-VFDFN Exposed Pad package, with the supplier device package being 10-HVSON (3x3).

Does the PCF8563BS/4,118 have alarm and timer functions?

Yes, it includes alarm and timer functions, along with a watchdog timer.

What is the timekeeping current consumption?

The typical timekeeping current is 0.25 µA at 3.0 V and 25°C, and ranges from 0.6 µA to 0.75 µA at 2V ~ 5V.
