This NXP Semiconductors RF transmitter, part number PCF7900VHN/C0L/UZ, is a highly integrated single-chip transceiver solution. It is designed for applications operating in the ISM/SRD bands, specifically supporting frequencies of 315, 434, 868, and 915 MHz. The device offers advanced security features and requires minimal external components.
Key electrical characteristics include support for ASK/OOK, FSK, or GFSK-like modulations, and a benchmark receiver sensitivity. It features on-chip channel filtering with automatic calibration and a configurable Rx polling timer with 2% absolute accuracy. The device is built on a low-IF, direct-conversion receiver architecture.

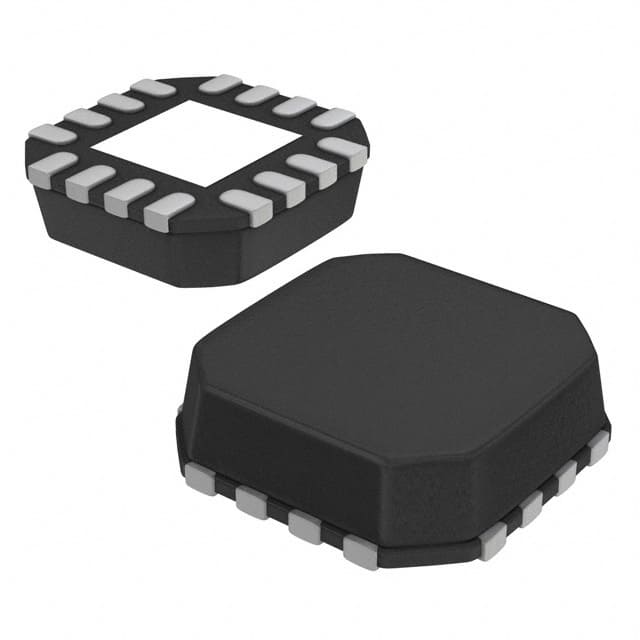

The PCF7900VHN/C0L/UZ is housed in a 16-pin HVQFN package and is designed for surface mount applications. Its small form factor and low power consumption make it suitable for battery-powered handheld devices and their counterparts.
This transceiver is ideal for keyless entry systems and Tire Pressure Monitoring Systems (TPMS), offering enhanced security and user feedback capabilities for car-access applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PCF7900VHN/C0L/UZ operates in the 315, 434, 868, and 915 MHz bands.
This RF transmitter supports ASK/OOK, FSK, and GFSK-like modulations.
The device achieves benchmark receiver sensitivity.
The Rx polling timer has an absolute accuracy of 2%.
It is supplied in a 16-HVQFN (3x3) package.
The PCF7900VHN/C0L/UZ is designed for surface mount installation.
The RoHS status is RoHS3 Compliant.
