| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,057 pcs
|
32057 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Clock Frequency | |
| Current | |
| Features | |
| Industrial Grade | |
| Interface | |
| Interrupt Output | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Voltage |

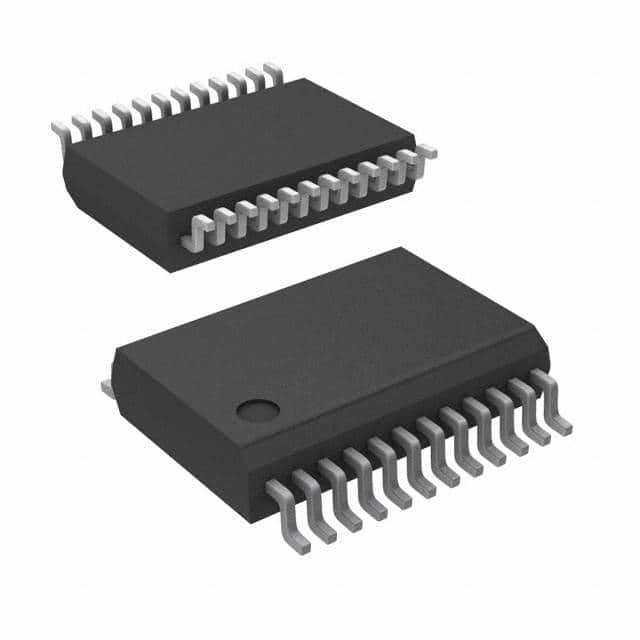

The Texas Instruments PCA9555DBR is a 16-bit I/O expander designed for I2C and SMBus interfaces. It operates within a voltage range of 2.3V to 5.5V and supports a maximum clock frequency of 400 kHz. This device features an interrupt output and is available in a 24-SSOP package, suitable for surface mounting.
With 16 I/O pins, the PCA9555DBR offers flexibility for expanding digital input/output capabilities in embedded systems. The expander supports push-pull output types and operates across a temperature range of -40°C to 85°C. It is designed for applications requiring additional GPIOs where microcontroller pins are limited.
The PCA9555DBR is specified with current capabilities of 10mA and 25mA. It includes features like Power-On Reset (POR). The component is packaged in a 24-SSOP (0.209", 5.30mm Width) for surface mount applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PCA9555DBR operates from 2.3V to 5.5V.
The PCA9555DBR is available in a 24-SSOP package.
The PCA9555DBR operates from -40°C to 85°C.
The PCA9555DBR is RoHS3 Compliant.
