| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

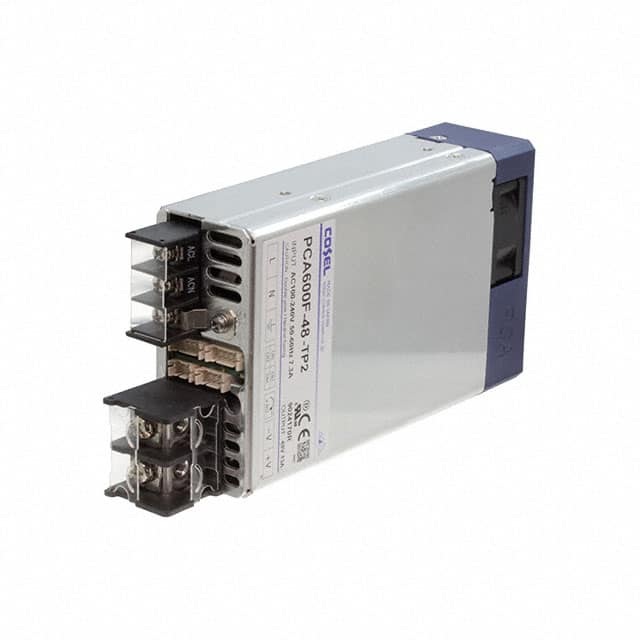

The Cosel PCA600F-48-TP2 is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a single 48V output with a maximum power of 336W and a current rating of 7A.
This converter operates with a universal input voltage range of 85-264 VAC and boasts an efficiency of up to 88% at 100V AC input (100% load). Key features include adjustable output voltage, Power Factor Correction (PFC), remote on/off control, and remote sense capabilities. It is designed for chassis mounting and has dimensions of 152.0mm x 89.0mm x 41.0mm.
The PCA600F-48-TP2 meets various safety standards including UL62368-1, EN62368-1, ANSI/AAMI ES60601-1, and EN60601-1 3rd edition, making it suitable for medical equipment. It operates within an ambient temperature range of -20°C to 70°C.
The input voltage range is 85-264 VAC single phase, with DC input possible from 88-370 VDC (excluding PCA1000F and PCA1500F).
The converter is enclosed and chassis mount.
The operating temperature range is -20°C to 70°C.
The output voltage is 48V and the output current is 7A.
The maximum output power is 336W.
It complies with 60601-1, 60950-1, and 62368-1.
